Red Hat Certified Spinnaker Operator

Spinnaker Lifecycle Management

  • In this document we are going to explore the Red Hat Certified Spinnaker Operator to install Red Hat Certified Spinnaker.

  • There are several ways of using the Spinnaker Operator

    • OpenShift 4 Certified Operators Marketplace

    • Quay, as a Custom Operator

    • As a CRD, which omits Operator Lifecycle management

  • The simplest approach by far is by using the OpenShift 4 Certified Operator Marketplace. When customization or other changes are desired, using the CRD or Quay might be a better fit.

Using the OpenShift 4 Marketplace

  • The marketplace requires a running OpenShift 4 installation, either use the openshift-installer, the disconnected install guide, or code ready containers. CRC is excellent for testing purposes and is thel most accessible option to work with for small test installs.

Instructions to use Marketplace Operator

  • Log into OpenShift with an account that has privileges to install Operators, we’re using kubeadmin on our CRC install because it’s convenient, but would by no means advice anyone to do that on a production system.

  • Go to Operators, OperatoHub, and filter for spinnaker. The community operator as well as the Open Enterprise Spinnaker Operator will show. The Open Enterprise Spinnaker Operator is the only Red Hat Certified Spinnaker, with all containers Red Hat Certified. Click on the Open Enterprise Spinnaker Operator.

  • The brings up the Operator Overview, with its documentation and the install button. Clicking the install button will bring up the create subscription page.

  • The Create Operator Subscription is part of the Operator Lifecycle Manager. The OLM framework enables the creator of an operator to update the Operator and offer new functionality, features, and versions to users without users having to lift a finger, when users decide to subscribe to the Automatic Approval Strategy.

  • After clicking Subscribe, the installation automatically redirects to the Installed Operators section, where the status will change with the progress made on installing the Operator. Installation takes a couple of seconds before the status changes to InstallSucceeded as shown below.

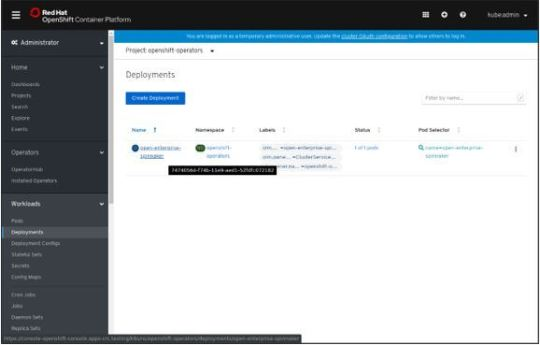

  • Behind the scenes, the Operator Framework has set up the OLM Subscription, and the Custom Resource Definition backed by the OES Operator. The installation of the OES Operator pre-creates a Deployment with a Pod that can be used to trigger helm charts which deploy spinnaker based of a configurable manifest.

  • Going back to the Installed Operators and clicking the Open Enterprise Spinnaker Operator link will pull up the Operator Details page.

  • To create a deployment of Spinnaker, select the Open Enterprise Spinnaker Operator tab and click the Create Open Enterprise Spinnaker Operator button.

  • The YAML on the screen is the actual configuration that gets fed to the CRD’s API endpoint, and gets translated to commands for halyard. The helm charts take care of the translation in the spinnaker-operator pod — the version of the spinnaker-operator container dictates which features are exposed from an operator perspective.

  • The default example presented does not expose spinnaker’s UI on a URL. To expose spinnaker’s UI, we can edit the configuration and add an ingress. When using OpenShift 4, the ingress class is LoadBalancer. It is also essential to set the hostname for the ingress correctly. In this example, the host should end in apps-crc.testing, as that is the cluster’s domain name. Below is a sample configuration that leverages the ingress for the UI and the API.

        kind: OpenEnterpriseSpinnakerOperator
        name: oes
        namespace: openshift-operators
        spinnakerVersion: 1.15.1
        tag: 1.15.1-1
        - name: dockerhub
        - library/alpine
        - library/ubuntu
        - library/centos
        - library/nginx
        - artifacts
        - jobs
        enabled: true
        imageTag: RELEASE.2019-09-18T21-55-05Z
        serviceType: ClusterIP
        accessKey: spinnakeradmin
        secretKey: spinnakeradmin
        bucket: spinnaker
        nodeSelector: {}
        enabled: false
        create: true
        create: true
        halyardName: open-enterprise-spinnaker
        spinnakerName: null
        enabled: true
        host: spinnaker.apps-crc.testing
        annotations: 'false' LoadBalancer
        enabled: true
        host: gate.spinnaker.apps-crc.testing
        annotations: 'false' LoadBalancer
  • After adapting the configuration click the create button to deploy spinnaker. For other configuration options the values.yaml in the Github repository is leading.

  • Creation of the deployment leads back to the Operator Details. Clicking the deployment’s name there brings up the Operator Overview, where the Resources tab shows the base components for the deployment.

  • When deploying the Red Hat Certified Minio, and halyard containers they get pulled into OpenShift from the Red Hat registry. To follow halyard’s progress, the Logs tab in the Pod Details shows the execution flow of the supplied configuration, and subsequently, the creation of the services required for spinnaker. Following the halyard, logs are also possible from the CLI by using either ‘kubectl’ or ‘oc’ with ‘logs -f’ on the halyard Pod.

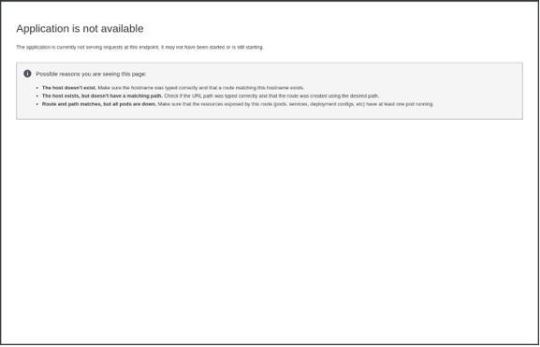

  • If the name serving for OpenShift has been set up correctly in the cluster, and externally, the URL provided in the configuration, http://spinnaker.apps-crc.testing, should initially return an error that the application is not available.

  • As soon as several of the containers have spun up, which can be seen in the Pods, Deployments, or Services overview of the namespace, the frontend of Spinnaker becomes available. The initial “Hello!” screen loads and lands on Spinnaker’s search page.

  • Generally, Spinnaker Operator deployment process will take couple of minutes time, as some of the services might be configuring depending on the options and the system configuration.

  • The search UI will be responsive, as long as the projects and the applications do not load the full stack is not yet done configuring and deploying.
