# Deployed Artifacts

The Deployed Artifacts page displays the artifact status of all the generated and deployed artifacts in the application.

* The panel at the top displays the total number of artifacts in the application, the number of deployed artifacts and number of deployed overridden artifacts.
* The **Artifact Risk Status** panel displays the summary of the risk status of the listed artifacts
  * **Critical Risk** - The deployments that are of critical risk.
  * **High Risk** - The deployments that are of high risk.
  * **Medium Risk** - The deployments that are of medium risk.
  * **Low Risk** - The deployments that are of low risk.

<figure><img src="https://2047464521-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MBEa1hoX6SqpDj-ymNs%2Fuploads%2F96YdsFqRDXhX6JGA6gV9%2Fdeployed%20artifacts%201.png?alt=media&#x26;token=8e8bc397-d38b-4989-9ec7-df3c26c29162" alt=""><figcaption></figcaption></figure>

The panel below displays the details of the artifacts.

<figure><img src="https://2047464521-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MBEa1hoX6SqpDj-ymNs%2Fuploads%2FXAblkUAJF3SuCMsBnm4h%2Fdeployed%20artifacts%202.png?alt=media&#x26;token=5eedb89f-d322-48b3-b0ab-feab092e2a1b" alt=""><figcaption></figcaption></figure>

* **Application -** Displays the name of the application.&#x20;
* **Account** - Displays the associated account name of the application.&#x20;
* **Artifact SHA** - Displays the specific version of the artifact.&#x20;
* **Artifact Version** - Displays the version of the artifact.&#x20;
* **Artifact Tags** - Displays the tags for the artifact that were sent in the build events.&#x20;
* **Risk Status** - Displays the risk status of the artifact.&#x20;
* **Stage** - Displays the life stage of the artifact.&#x20;
* **Vulnerability** - Displays the number of vulnerabilities identified for the given artifact. On clicking it, the [Vulnerabilities Management](https://docs.opsmx.com/opsmx-delivery-shield-platform/user-guide/vulnerability-management) details page is displayed.&#x20;
* **Open Issues** - Displays the number of open security issues (alerts) identified for the given artifact.&#x20;
* **Created on** - Displays the date when the artifact was created.&#x20;
* **Built by** - Displays the build details of the artifact.&#x20;
* **Source Repository** - Displays the source repository name of the artifact.&#x20;
* **Cluster** - Displays the name of the cluster to which the artifact belongs to.&#x20;
* **OSS Risk** - On clicking View, the OSS risk page for the related artifact is displayed.&#x20;
* **SBOM** - On clicking View, the SBOM page for the related artifact is displayed.&#x20;
* **DBOM** - On clicking the displayed risk status, the DBOM page for the related artifact is displayed.&#x20;
* **Actions** - On clicking the three dots, you can view the list of scans run on the artifact as shown below:

You can download the scan results by clicking on it.&#x20;

### View SBOM for Artifacts

The SBOM for all the deployed artifacts can be viewed by clicking the **View SBOM** option as shown below:&#x20;

<figure><img src="https://2047464521-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MBEa1hoX6SqpDj-ymNs%2Fuploads%2Fzn0BbAekJdJoNvk0OxEG%2Fdeployed%20artifacts%20.png?alt=media&#x26;token=a0417c41-7f27-4a36-a2c0-9c9cb01794f4" alt=""><figcaption></figcaption></figure>

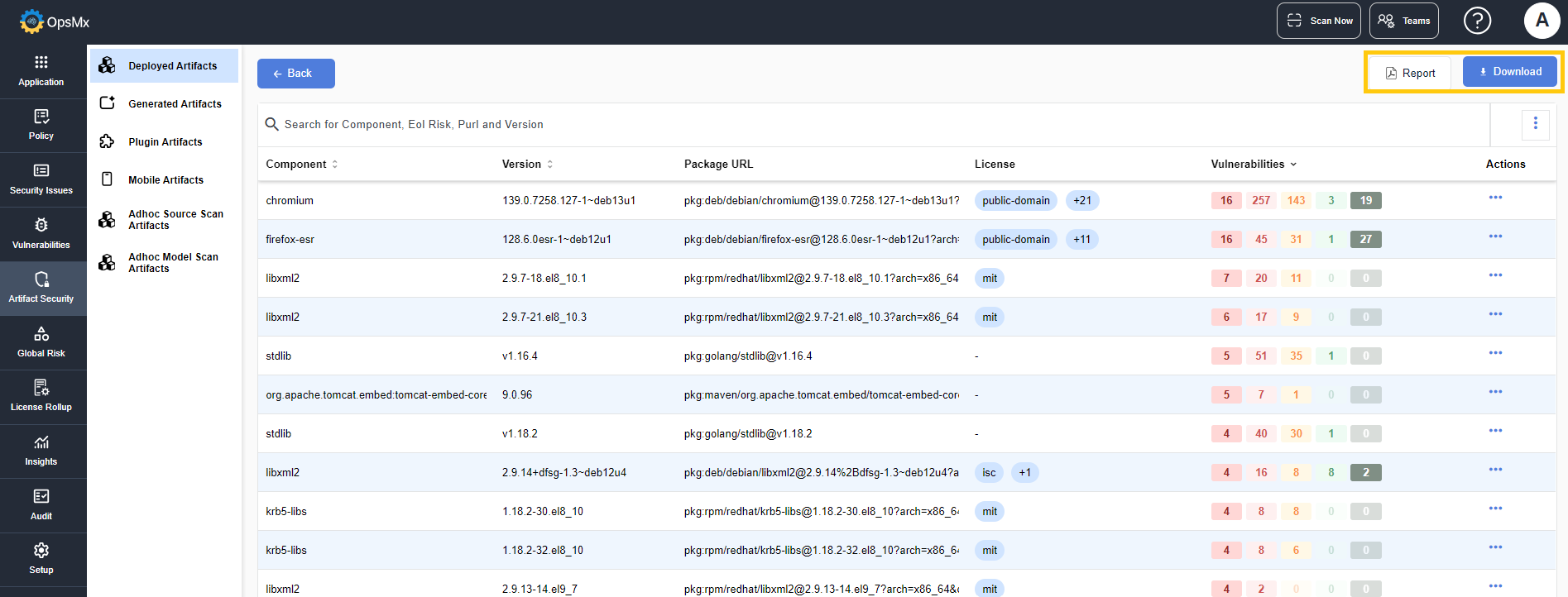

On clicking **View SBOM**, the SBOM page is displayed.&#x20;

<figure><img src="https://2047464521-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MBEa1hoX6SqpDj-ymNs%2Fuploads%2FdEhMo73KLsjIEHMBFyG8%2Fdeployed%20sbom%20details.png?alt=media&#x26;token=4598181a-2358-429b-884c-1bb9c23ad6b9" alt=""><figcaption></figcaption></figure>

It displays the various components and related details of the components as shown below:

* **Component** - Displays the components of the artifact.
* **Version** - Displays the components version.&#x20;
* **Package URL** - Displays the package URL of the component.
* **License** - Displays the list of licenses that are available for the component.&#x20;
* **Vulnerabilities** - Displays the count of vulnerabilities related to the component.&#x20;
* **EOL Risk** - Displays the score of how close the OSS packages used in their project are towards End-of-Life (EOL).
* **Dependency** -&#x20;
* **OSS Risk** - By clicking **View**, you can view the artifact details of the component.&#x20;
* **Actions** - By clicking **Edit License**, you can edit the license type.

{% hint style="info" %}

* You can view the vulnerabilities of the components by clicking the **Vulnerabilities** column.&#x20;
  {% endhint %}

- You can download the SBOM details in .pdf, .json or .csv format by clicking the **Download** button.&#x20;
- You can download the SBOM details in report format by clicking the **Report** button. The downloaded report will be a consolidated pictorial form as shown below:

<figure><img src="https://2047464521-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MBEa1hoX6SqpDj-ymNs%2Fuploads%2Fk7aiY0tALCabToKIZ6v9%2Fimage.png?alt=media&#x26;token=ac27e4d8-4493-4a71-aa1c-c9fd8d30eefd" alt=""><figcaption></figcaption></figure>

### To View SBOM Report for Individual Artifacts

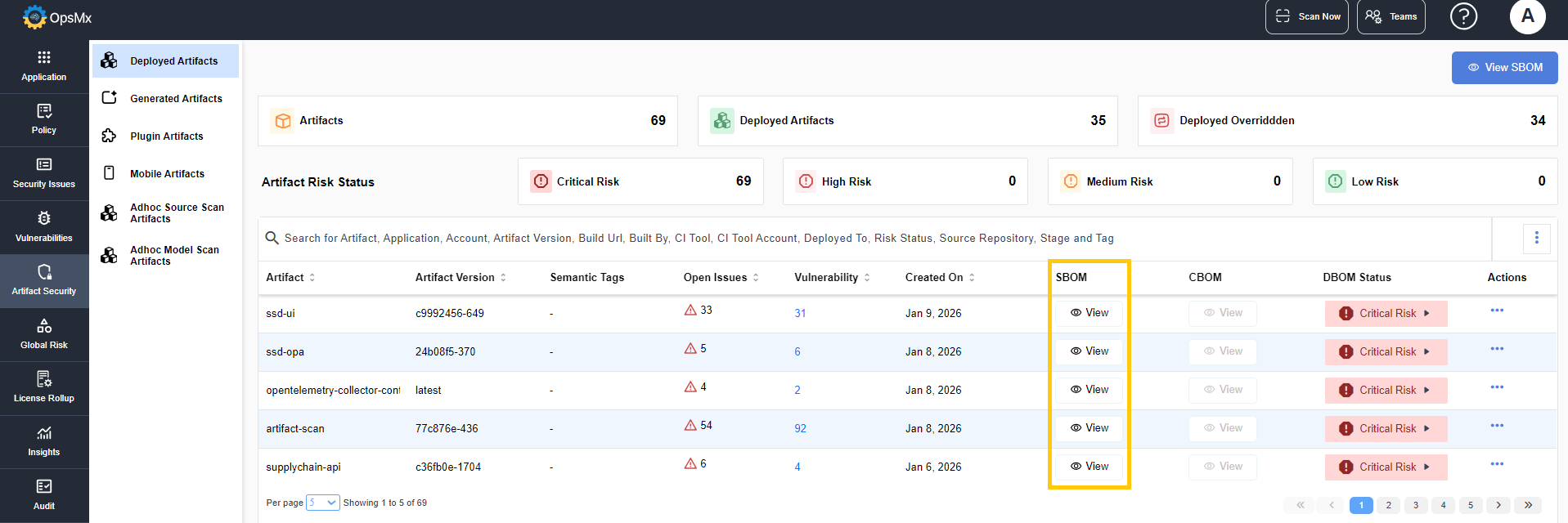

The SBOM for the individual artifacts can also be viewed. Navigate to the SBOM column and click **View**.&#x20;

<figure><img src="https://2047464521-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MBEa1hoX6SqpDj-ymNs%2Fuploads%2FvN6nv7qvr7qgWM6mWF2V%2Fdeployed%20indi%20sbom%20.png?alt=media&#x26;token=d68ac307-3caa-48db-8cc5-a642593a5613" alt=""><figcaption></figcaption></figure>

The SBOM page for the selected artifact is displayed as shown below:

<figure><img src="https://2047464521-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MBEa1hoX6SqpDj-ymNs%2Fuploads%2FxjvqcSRjgRUCRuou796C%2Fimage.png?alt=media&#x26;token=5864e52c-b03b-48e0-af3d-748b0db74677" alt=""><figcaption></figcaption></figure>

### To Download SBOM details as Report&#x20;

The SBOM details can be downloaded in a representation format.

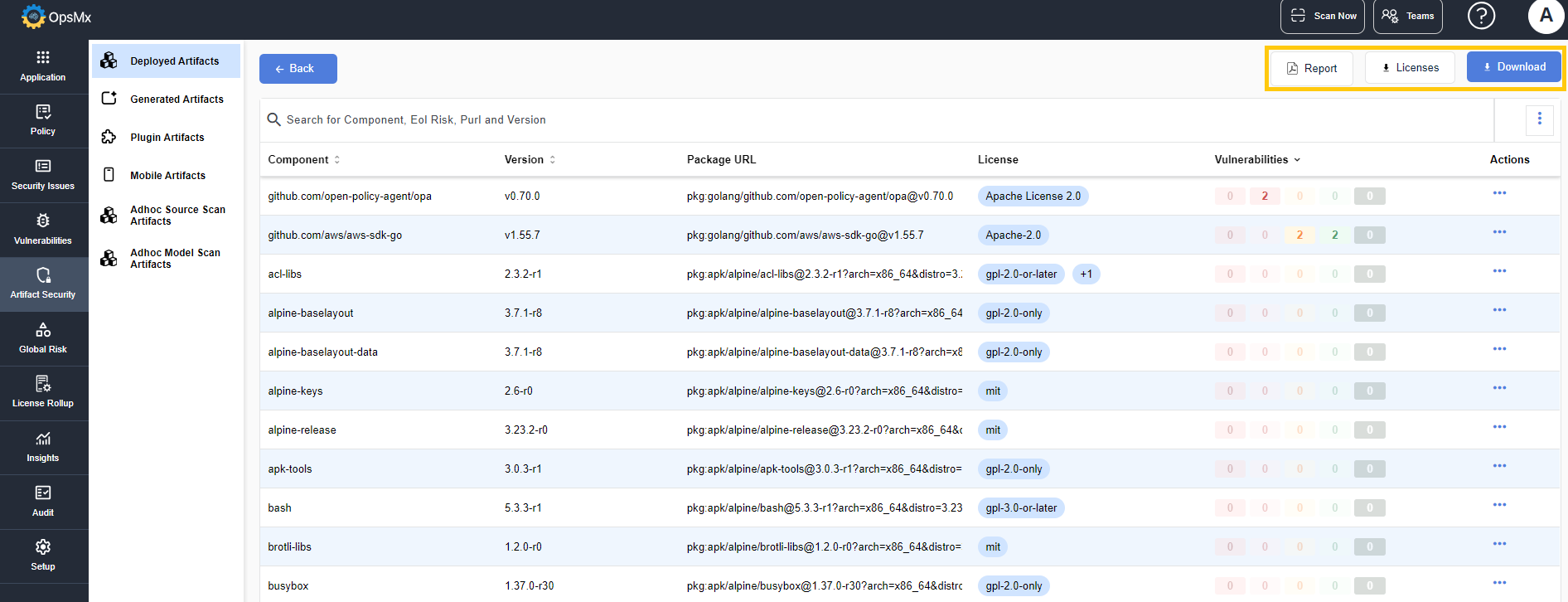

* Navigate to the top right corner of the page and click **Report**.&#x20;

<figure><img src="https://2047464521-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MBEa1hoX6SqpDj-ymNs%2Fuploads%2F54j7z9vHD9vtReQxZvZB%2FSBOM%20new%20deploy%20reports.png?alt=media&#x26;token=1d899914-a6e3-45e8-ab4c-955f77f8dca0" alt=""><figcaption></figcaption></figure>

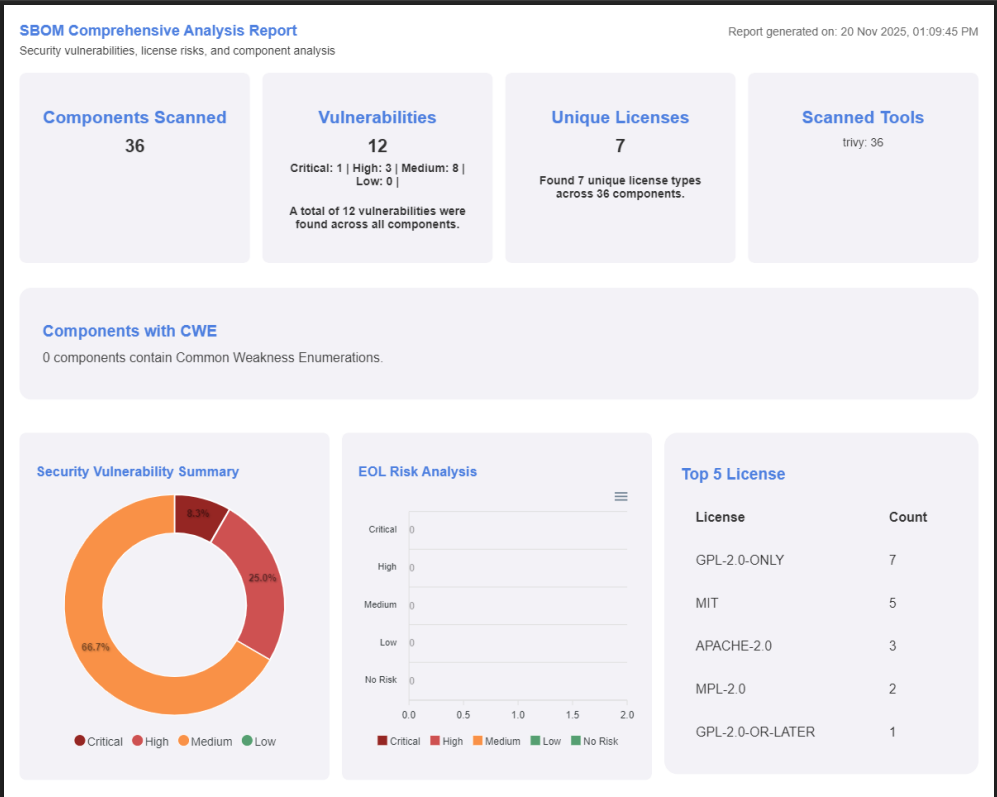

* The page details are consolidated as a report and downloaded in the PDF format as shown below:

<figure><img src="https://2047464521-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MBEa1hoX6SqpDj-ymNs%2Fuploads%2F2I5Aqh7kzXGimpwfCqjn%2Fimage.png?alt=media&#x26;token=8e9a0b10-ae97-4456-8477-72782089e608" alt=""><figcaption></figcaption></figure>

### To Download SBOM details&#x20;

The SBOM details can be downloaded in .Json or .CSV file or .pdf format by clicking the **Download** button.&#x20;

* Navigate to the top right corner of the page and click **Download**.&#x20;

<figure><img src="https://2047464521-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MBEa1hoX6SqpDj-ymNs%2Fuploads%2F8UdjJt0AgfHfiS2cfCoQ%2FSBOM%20new%20deploy%20reports.png?alt=media&#x26;token=0a79fda8-6ab1-40c0-9efa-af47c6919b40" alt=""><figcaption></figcaption></figure>

The SBOM details are downloaded in the selected format.&#x20;

### To View Licenses of the Components

The license details of all the components that are available for the given application can be downloaded. &#x20;

* Navigate to the top right corner of the page and click **Licenses**.&#x20;

<figure><img src="https://2047464521-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MBEa1hoX6SqpDj-ymNs%2Fuploads%2FphRcIKBLAShP9pSV3Sjm%2Fimage.png?alt=media&#x26;token=b9cac922-67a0-4ae9-a900-33f5f7ee4fe6" alt=""><figcaption></figcaption></figure>

* The license details are consolidated as a report and downloaded in .txt or .html or .md format.&#x20;

{% hint style="info" %}
You can view the vulnerabilities of the components by clicking the **Vulnerabilities** column.&#x20;
{% endhint %}
