# GitHub Actions Workflow for OpsMx SSD Project Synchronization

This GitHub Actions workflow is designed to synchronize projects defined in YAML files with the OpsMx SSD (Software Delivery Dashboard) API.

### Key Features:

* **YAML-Only Processing**: The workflow exclusively handles YAML files.
* **Robust Commit Handling**: It safely manages create, update, and delete operations, even across multi-commit pushes.
* **Error Tolerance**: The process is designed not to fail when encountering non-YAML commits or invalid YAML definitions.

### Trigger Conditions:

The workflow is activated only when changes are pushed to YAML files (.yaml or .yml extensions) located in the following directories:

* source-projects/
* artifacts/

Each YAML file represents a single project.

{% hint style="info" %}
Commits that do not modify YAML files in these specific paths will be completely ignored.
{% endhint %}

### Multi-Commit Handling

The workflow compares changes between `github.event.before` and `github.sha`, ensuring correct behavior even when multiple commits are pushed together.

### Project Name Rules

Project names are derived from YAML filenames and automatically sanitized to meet the following:

* Is in lowercase
* Must start with a letter
* Only letters, numbers, and hyphens are allowed

### Scan Type Mapping

The scan type mapping path is as shown below:

* source-projects/ → sourceScan
* artifacts/ → artifactScan

### API Endpoints Used

The following endpoints are used:

* Create → /scan/project/upload
* Update → /scan/project/update
* Delete → /scan/project/delete

### Secrets Required

The following secrets are required:

\- ORG\_ID\
\- TEAM\_ID\
\- API\_TOKEN

All secrets are securely referenced and never logged.

### High-Level Workflow Flow

An high level workflow is given as shown below:

```apl
Push Event
↓
Detect YAML Changes
↓
No YAML Changes?→Yes → Exit (Green)
↓ No
Process Deleted YAML → Delete Projects
Process Added YAML → Create Projects
Process Modified YAML→ Update Projects
↓
Workflow Ends (Green)

```

{% hint style="info" %}
Sample yaml file contents for Artifact and Source scan are given below:
{% endhint %}

### Sample yaml file content for Artifact Scan

```
scanType: artifactScan
platform: docker
accountName: test
teamName: test
scanLevel: repoLevel
organisation: opsmx11
projectConfigs:
  - repository: restapp
    scheduleTime: 0
    tag:
      - simple-restapp-17412
    tagPattern: ""
    scanUpto: 0

```

### Sample yaml file content for Source Scan

```
scanType: sourceScan
platform: github
accountName: test-git (test)
teamName: test
scanLevel: repoLevel
organisation: PrabhuQA
type: user
projectConfigs:
  - repository: buildme
    scheduleTime: 0
    branch:
      - b1
    branchPattern: ""
    scanUpto: 0

```

### Steps to Create Projects in SSD:-

1. Commit the correctly structured YAML file, which contains the source/artifact content, to the centralized GitHub repository.

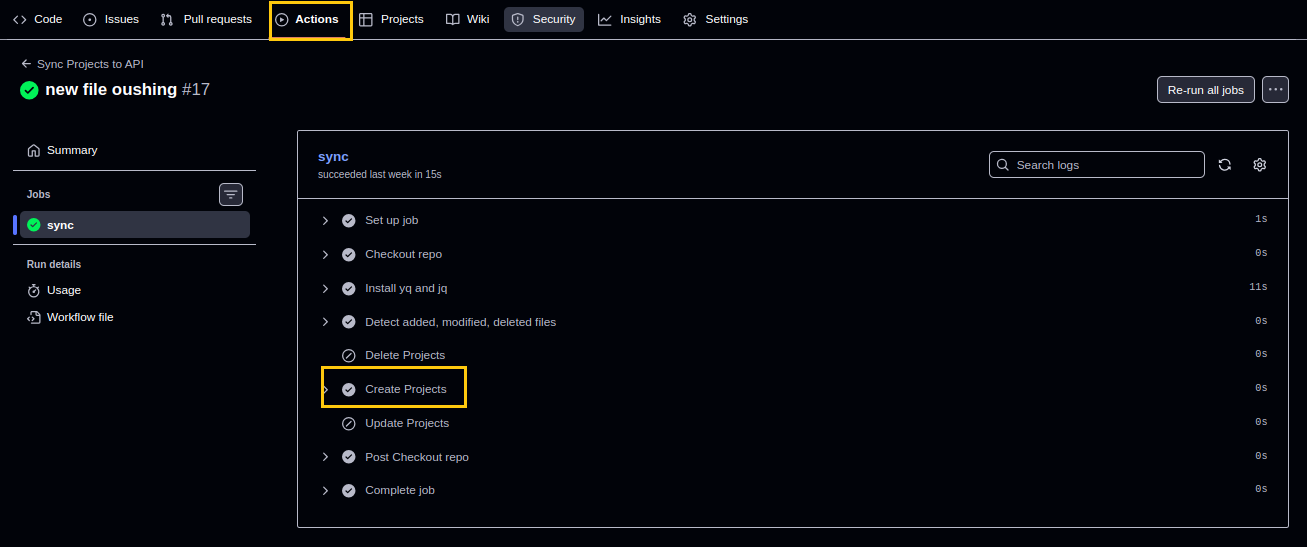

2. To view the workflow's execution, go to the **Actions** tab.

<figure><img src="/files/GPVtBuvu9BC6hHWrbMLO" alt=""><figcaption></figcaption></figure>

3. Log in to SSD and navigate to the **Adhoc Scan** page.
4. The project, named after the YAML file, is now visible to the user.

### Steps to Update Projects in SSD:-

1. Commit the updated YAML file, which contains the source/artifact content, to the centralized GitHub repository.

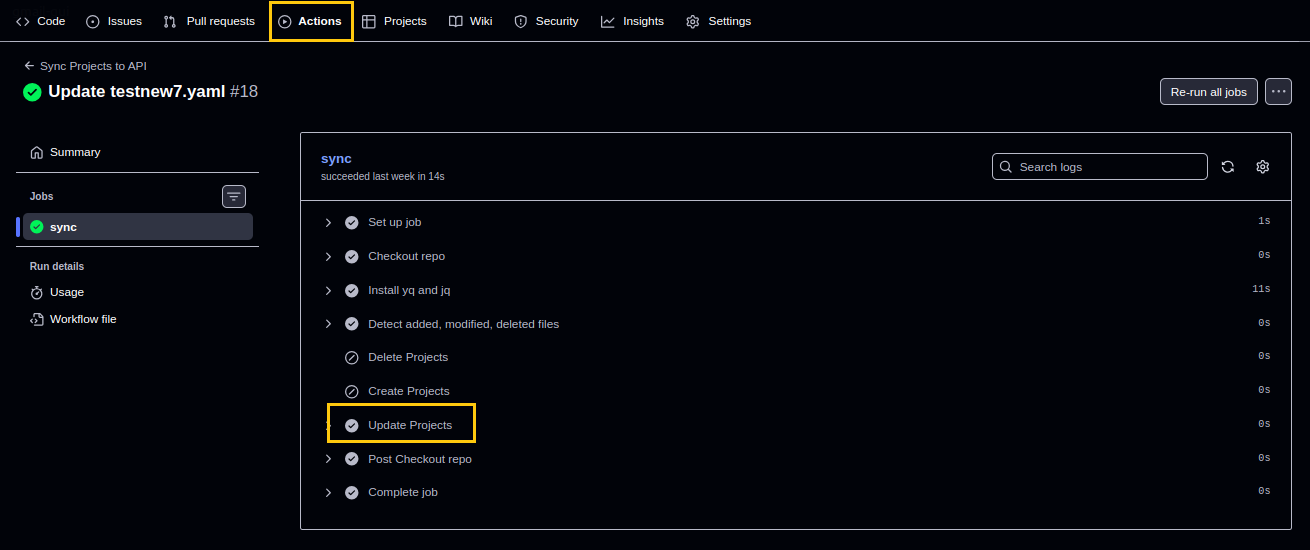

2. To view the workflow's execution, go to the **Actions** tab.

<figure><img src="/files/VHbh4ntdbJrsMLXY5Jhh" alt=""><figcaption></figcaption></figure>

3. Log in to SSD and navigate to the **Adhoc Scan** page.
4. Verify that the existing project is successfully updated with the content specified in the YAML file.

### Steps to Delete Projects in SSD:-

1. Delete/Remove the YAML file, which contains source and/or artifact content, from the centralized GitHub repository.

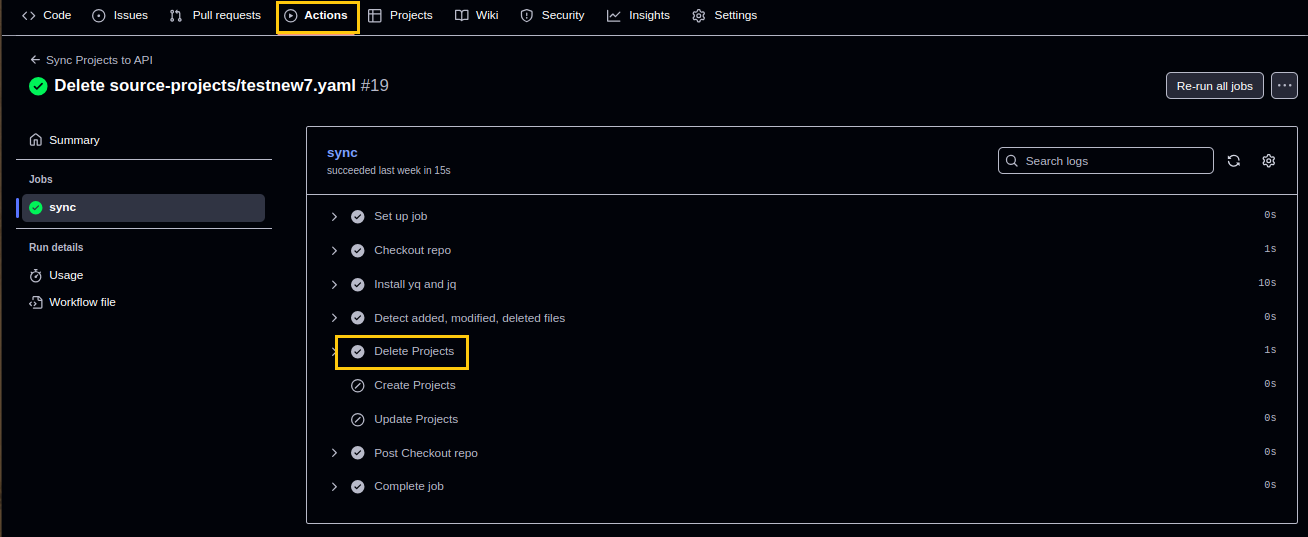

2. To view the workflow's execution, go to the **Actions** tab.

<figure><img src="/files/Yi79HYlr6eYnGwpXdKA6" alt=""><figcaption></figcaption></figure>

3. Log in to SSD and navigate to the **Adhoc Scan** page.
4. Verify that the project is not visible in the SSD UI because the corresponding YAML file has been deleted from the centralized repository.
