# Jenkins

Let’s learn how to configure visibility for **Jenkins**. It's an Integration for ISD application that pulls data from an external data source for ISD to use in making informed decisions.

Following are the steps:

1. Add / Edit application & its respective services. [**Refer to this page**](https://docs.opsmx.com/user-guide/manage-application) to know how to add / edit applications.
2. Add **Jenkins** as an Integration to the ISD system.  [**Refer to this page**](https://docs.opsmx.com/user-guide/data-sources) to learn how to add an         Integration.
3. Next, click on your application and go to the **pipeline builder** page. Here you can add and configure the multiple stages into the pipeline.

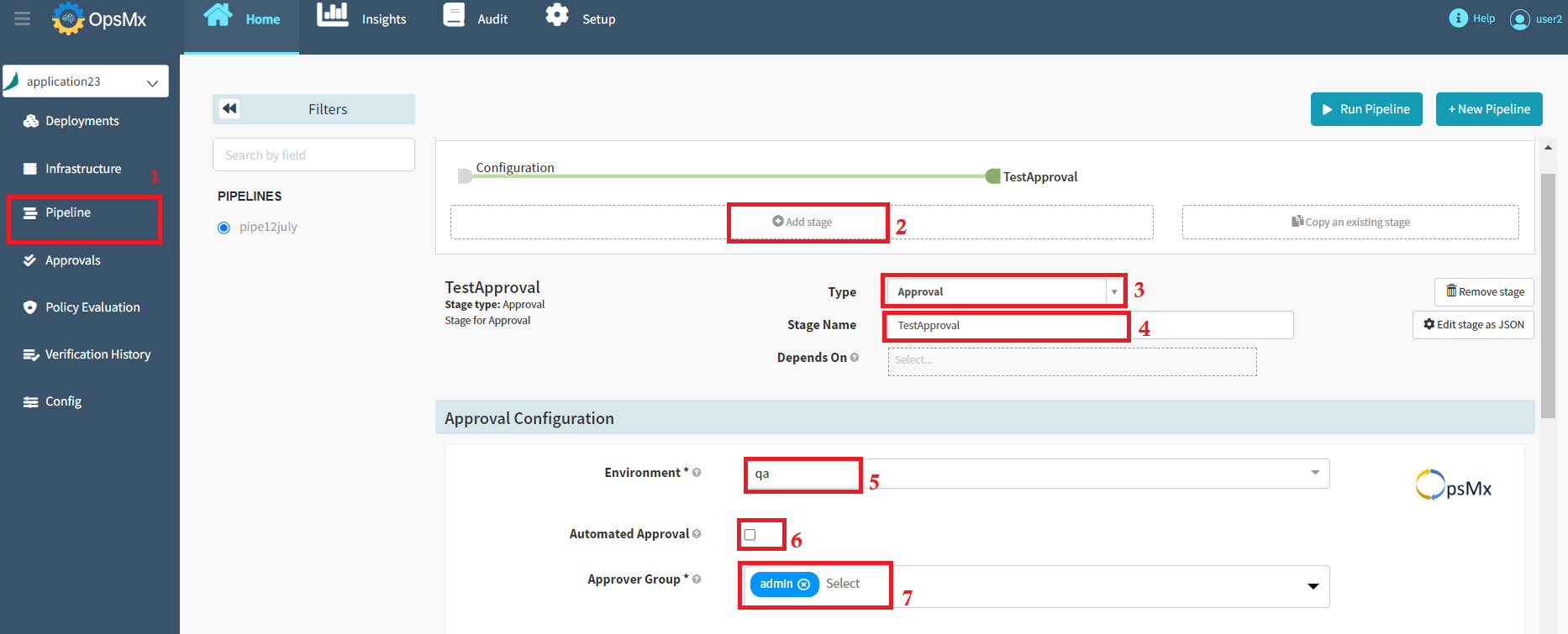

4. Click on "[**Add Stage**](https://docs.opsmx.com/user-guide/manage-pipelines/add-stage)" select the stage type as **Approval,** and enter the **stage name.** Here we have given the gate name "TestApproval".
5. Select the **Environment** from the drop-down menu and select the **approver group** from the drop-down menu, which contains the list of user groups who can approve the request. The selected group should have at least view access to the application.\
   If required, select the **Automated Approval** option, which will automatically approve the deployment based on preconfigured conditions.

<figure><img src="/files/Pj59g0LXWgWFaf4jeudR" alt=""><figcaption></figcaption></figure>

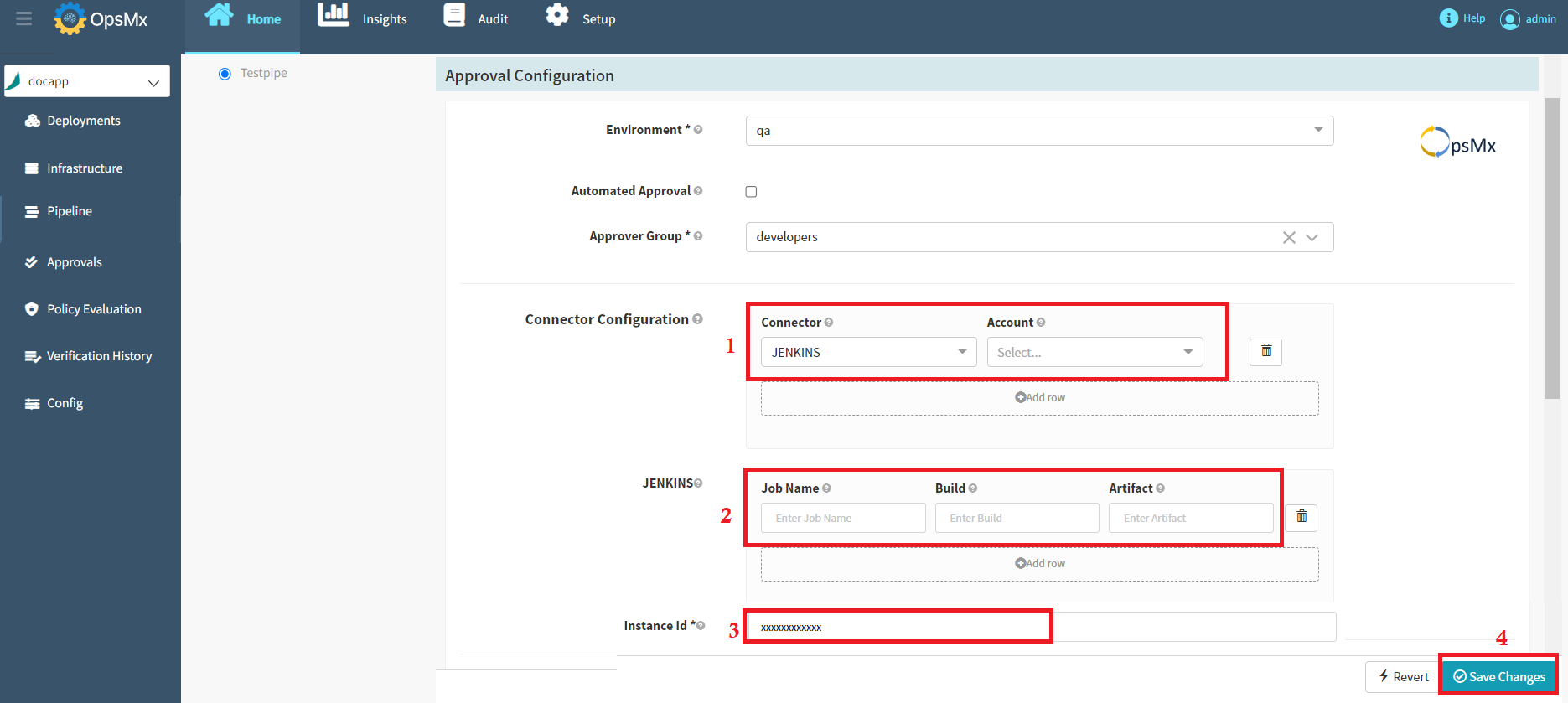

6\.  Select the "**Jenkins"** connector from the connector drop-down menu and select the "**Account**" from the drop-down menu.&#x20;

<figure><img src="/files/lxELKC6Bn1mJzcST1RwS" alt=""><figcaption></figcaption></figure>

7\.  Enter the **Project, Plan, Build,** and **instance ID** on the above screen and then click "**Save Changes**".&#x20;
