# Run a Pipeline

#### Run a Pipeline Manually

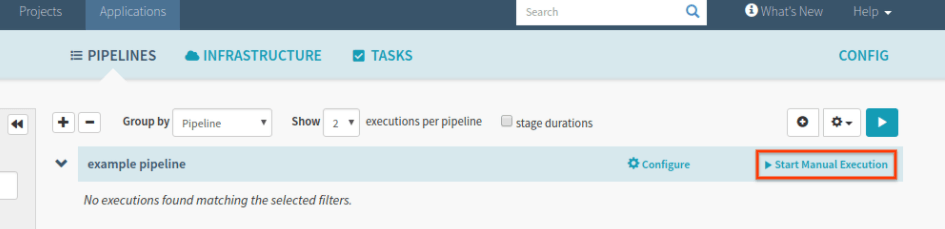

* Click the **Start Manual Execution** button to run a pipeline manually as shown below.

![](/files/0jkHG5bjEZmszYpc0BkA)

* A confirmation dialog box will appear. You can enter the required parameters and execute the pipeline.

The parameters depend on the pipeline. There will be no parameters if it is a simple pipeline with no configurations. You must enter the parameters if the pipeline has been configured. We will see examples of each.

#### **Simple pipeline**

* When manually executing the pipeline, we have configured a simple pipeline that deploys nginx, and we are not passing any parameters.

![](/files/7EFdjWiNMA2hJW6IHy3b)

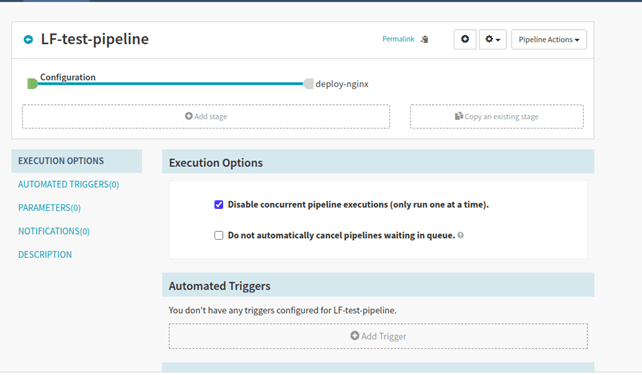

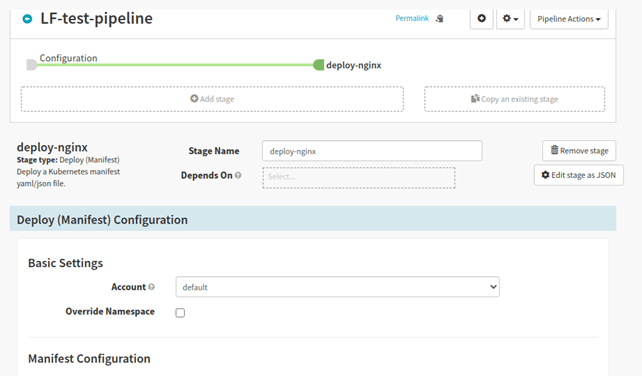

* In the above screenshot we can see a pipeline named ’LF-test-pipeline’. No changes have been made to the **configuration stage**. A Deploy(Manifest) stage has been configured, which deploys a Kubernetes manifest yaml/json file. **deploy-nginx** is the name of the stage. The screenshot is shown below. The details of adding stages are covered in previous sections.

![](/files/G4wGkROXJ3sE64DW8553)

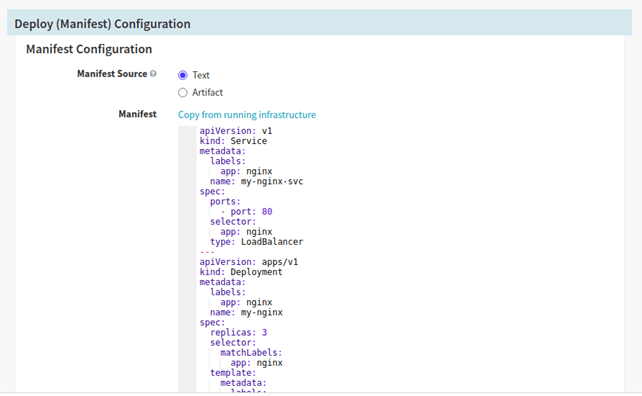

* In 'Manifest Configuration,' we chose a Text-based manifest as the **Manifest Source,** and we put the Kubernetes manifest yaml file to deploy nginx there.

![](/files/iXQ3z9yxFrBwZ3CvhjoQ)

* Save our configuration by selecting the Save Changes option at the bottom right of the screen, as shown in the screenshot below.

![](/files/wLKzyBTeYGw4kwcQWbTU)

![](https://lh4.googleusercontent.com/Rb0joOXtXUNPZ6ut-tlWOnM94lqWnlXdQMURVjX7V0JWLLPik_0wrsoWMY5WoRu2X1A1hupZwTPfNIHZW1_Us1Hwb7a8jLxNbQ7MeR4TSIHDbPQPEfZUQMrNknEp-K9d_OTBcdnH)

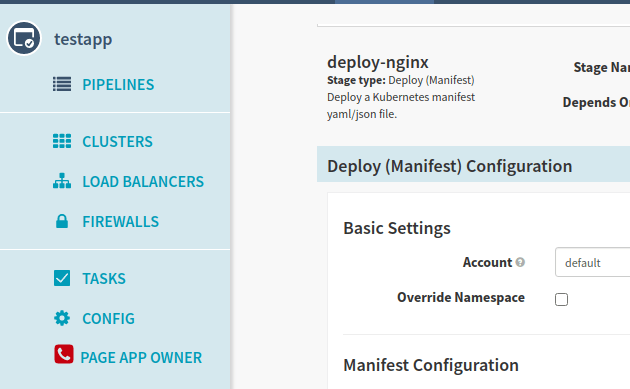

* After saving our pipeline, we'll return to the screen where all of our pipelines are shown, configured for the appropriate application, by selecting the **Pipeline** tab at the top left of your screen as shown below.

![](/files/wCcXtPvs662h77WOqvKO)

The pipeline that we have configured is under the **testapp** application as shown in the screenshot. Configuring application has been explained in previous lessons.

* Click the **PIPELINES** option and we will see the below screen.

![](/files/OjvpePopqcSewmoKlE7L)

* Click on **Start Manual Execution** to run this pipeline.

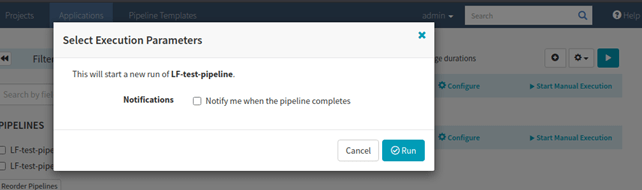

  We'll get a confirmation window, and we'll see that we don't need to pass any parameters to run the pipeline, as we have not configured any.

![](/files/XFf8OYOaDvxBfsQM3H2V)

We can see in the above screenshot that it says to select execution parameters, however as mentioned there is no parameter configured hence we do not need to pass any.

* Click on **Run** and the pipeline will be executed.

```
Comment:
Kubernetes manifest yaml file for nginx deployment:
apiVersion: v1
kind: Service
metadata:
  name: my-nginx-svc
  labels:
    app: nginx
spec:
  type: LoadBalancer
  ports:
  - port: 80
  selector:
    app: nginx
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: my-nginx
  labels:
    app: nginx
spec:
  replicas: 3
  selector:
    matchLabels:
      app: nginx
  template:
    metadata:
      labels:
        app: nginx
    spec:
      containers:
      - name: nginx
        image: nginx:1.14.2
        ports:
        - containerPort: 80
```
