# JFrog Xray

Let’s learn how to configure visibility for **JFROG**. It's an Integration for ISD application that pulls data from an external data source for ISD to use in making informed decisions.

Following are the steps:

1. Add / Edit application & its respective services. [Refer this page](https://docs.opsmx.com/opsmx-intelligent-software-delivery-platform/system-setup/applications/add-applications) to know how to add / edit applications.
2. Add JFrog as an Integration to the ISD system. [Refer this page](https://docs.opsmx.com/opsmx-intelligent-software-delivery-platform/system-setup/data-sources) to learn how to add an         Integration.
3. Next, you get the option to select the type of service you want to add. The options are:
   * Approval
   * Verification
   * Test Verification
   * Policy

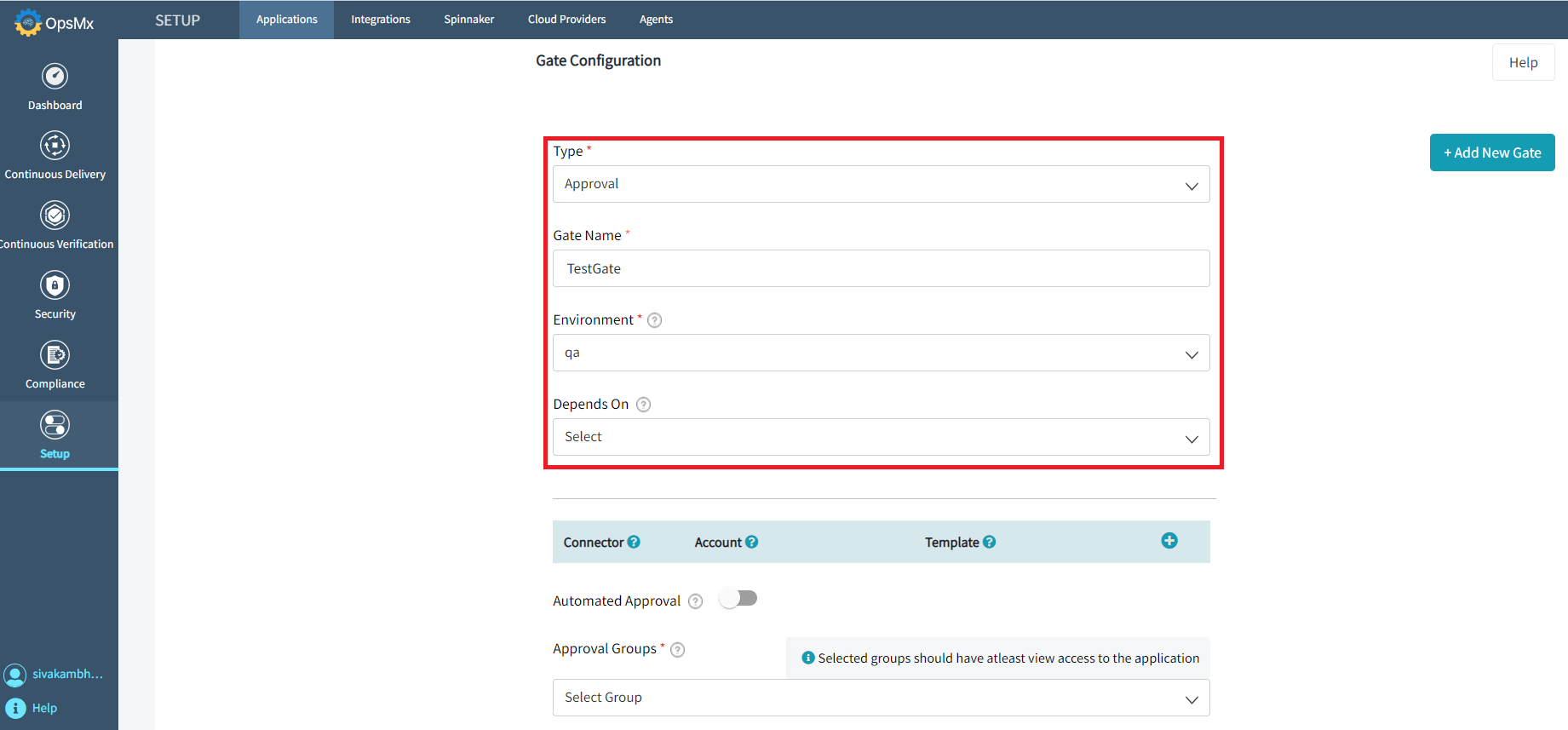

4.  Select the Type as **Approval** and enter the **Gate name** and then select the **Environment** from the drop-down menu as shown below. Here we have given the gate name "TestGate" and "QA" environment selected.

![](/files/dqPrOkgvtu9xKLAYb753)

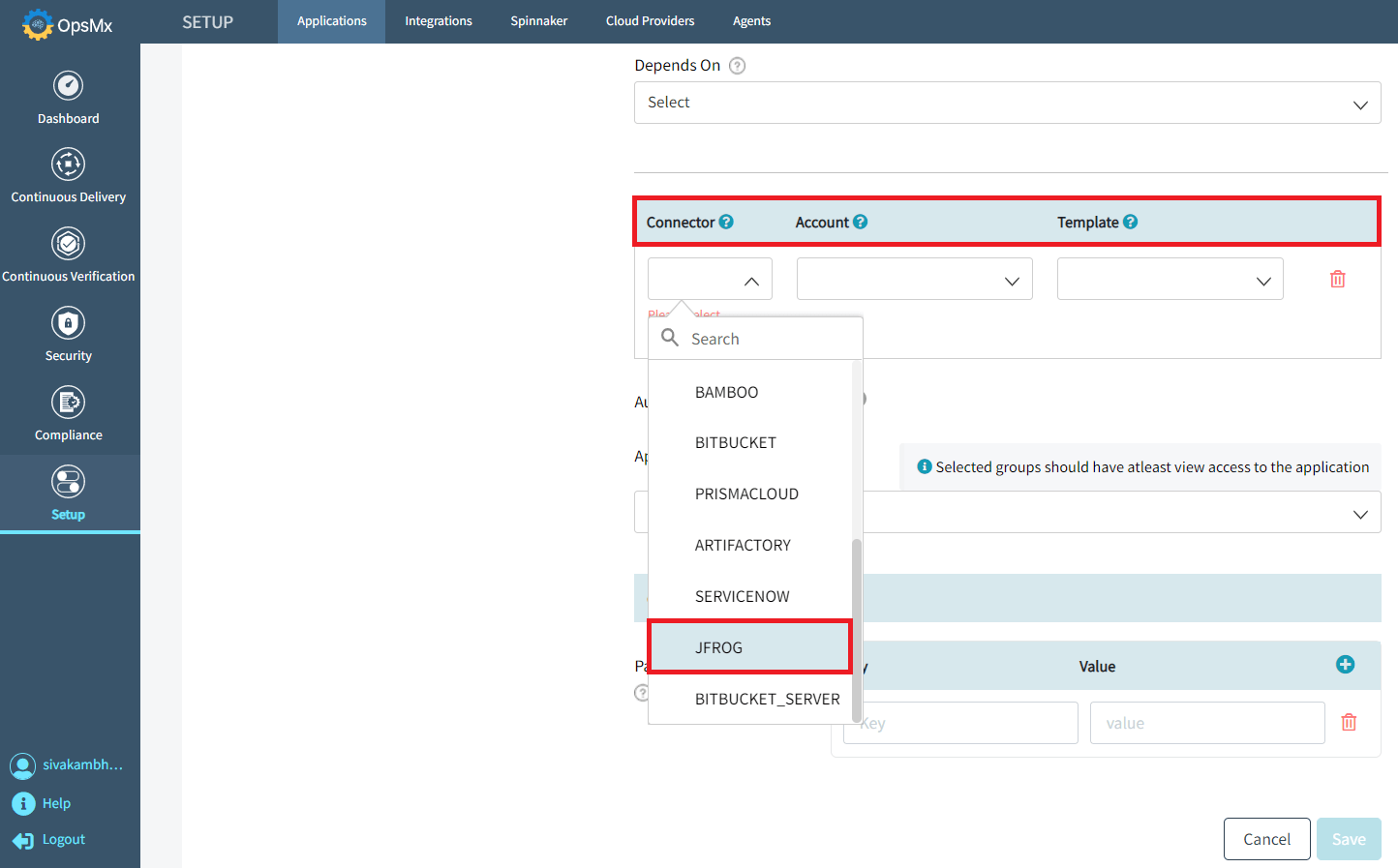

5\.  Select the "**Jfrog"** connector from the connector drop-down menu.

![](/files/IdH6hcUcPFSAwkh5berx)

6\. Select the "**Account**" from the drop-down menu. Here we have selected the default account.

{% hint style="info" %}
**Note: Template details will be fetched automatically based on the connector selected.**
{% endhint %}

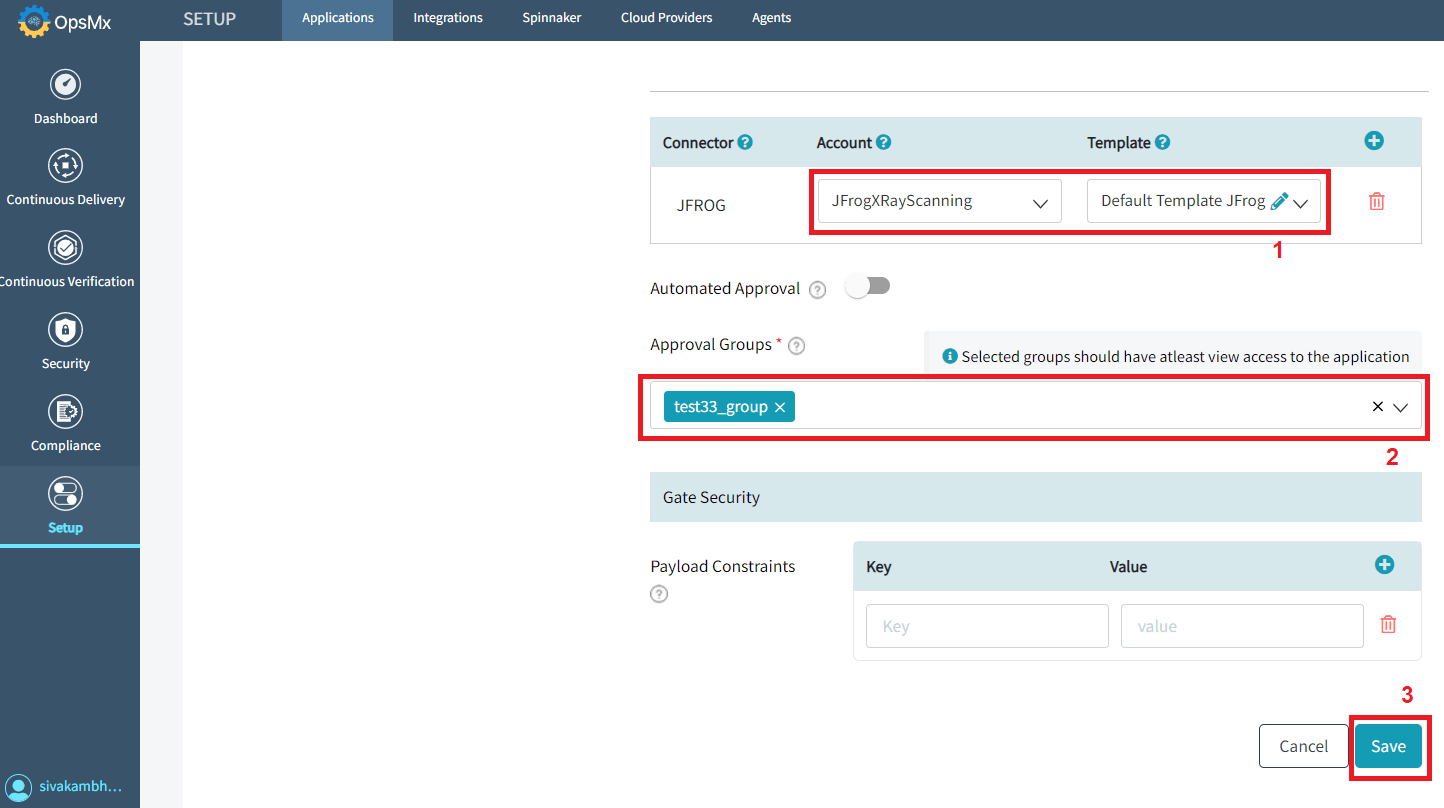

7\. Select the "**Approval Group**" from the drop-down menu and click "**Save**" button. The selected group should have at least view access to the application.

![](/files/0oWDbuuRxUWuxhTTa2eQ)
