How to do a Model Scan
The AI Model scan option is added as part of the Adhoc scan. The ability to scan AI/ML Models published on HuggingFace using NBDefence and Garak tools is added as part of this scan option.
To Access Model Scan

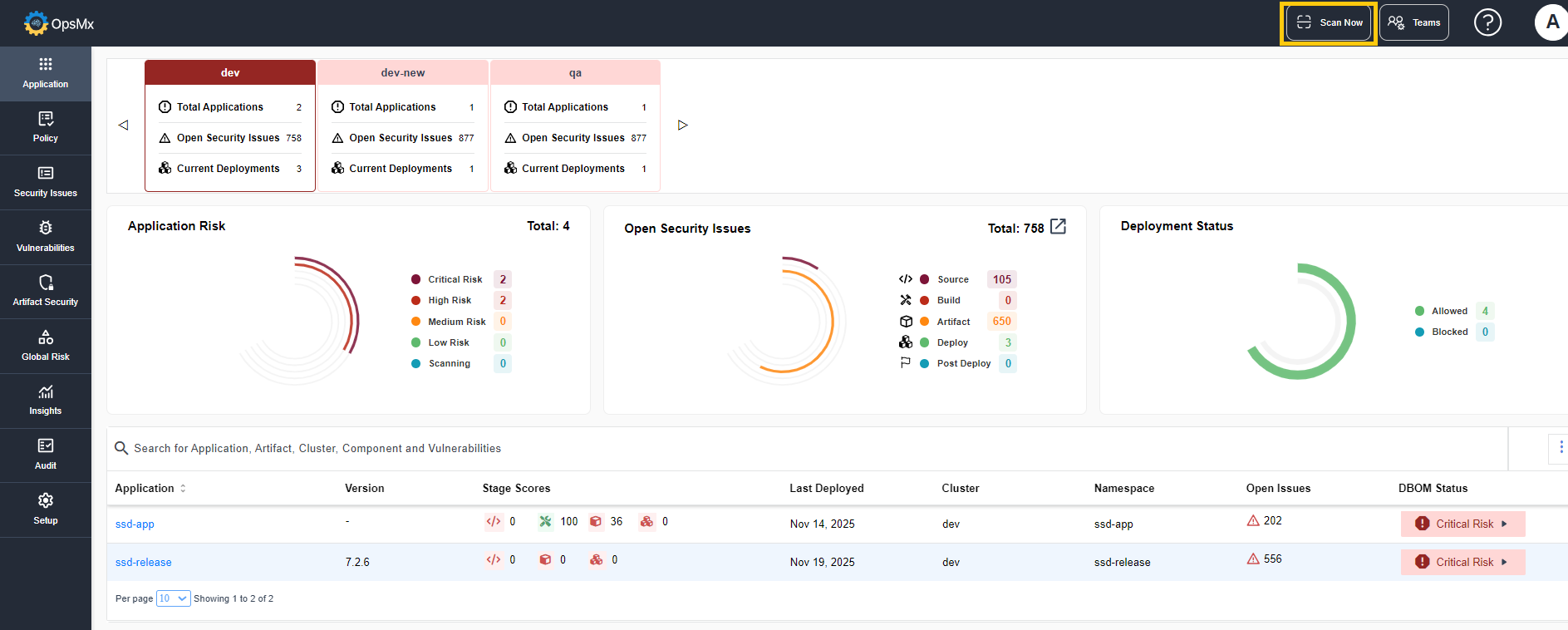

Click on Scan Now button at the top right corner of the screen.
In the screen that appears, select Model Scan from the left panel.
To Add a Project

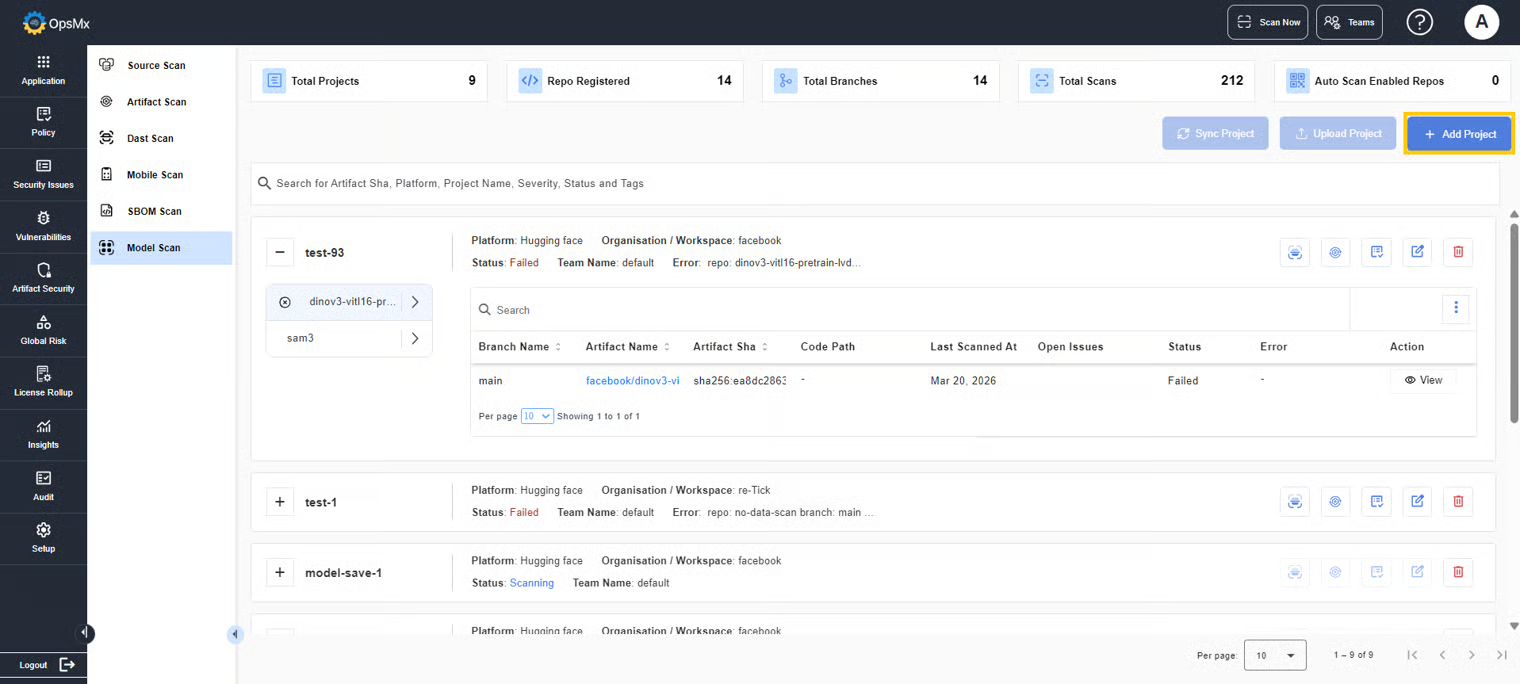

To add or update a new project with model scan configurations, for scanning, click Add Project.

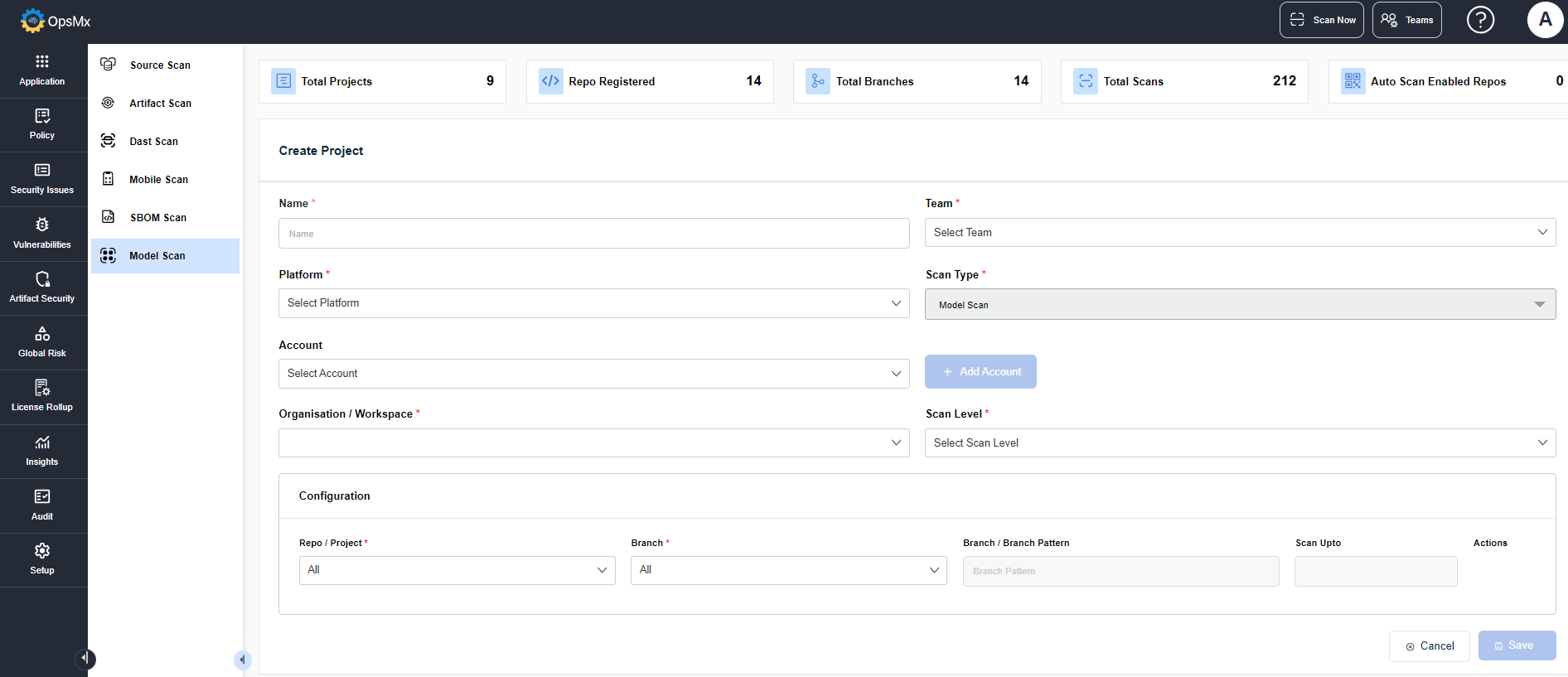

The Create Project details page is displayed as shown below. Enter the details for the following fields:
Name : Enter a name for the project.
Team : Select the team for which you want to create the project.
Scan Type : The default type is Source Scan.
Platform : Select the platform type, the platform where the code resides (Github, Gitlab Server, Bitbucket, Bitbucket Server, Azure, Azure Server) for the project.
Account : Choose the needed account that has been integrated for the selected platform. If no account is available for the selected platform then click Add Account.
The integration page is displayed. You can add a new account.
Organization / Workspace : Choose the organization or workspace that the selected account has access to.
Scan Level : Select the scan level; either organization level or repository level that needs to be scanned.
Configuration : Set the configuration details, and schedule the auto scan time.
Repo /Project : Select the repo or project name for which the scan needs to be executed.
Branch : Select the branch name for which the scan needs to be executed.
Branch Pattern : Select the branch pattern for which the scan needs to be executed.
Scan Upto : Select the branch limit for which the scan needs to be executed. (number of branches to be scanned)
Schedule Auto Scan : Select the time range during which the scan needs to be rerun automatically.
Click Save.
The project gets added for scanning.
To Upload a Project

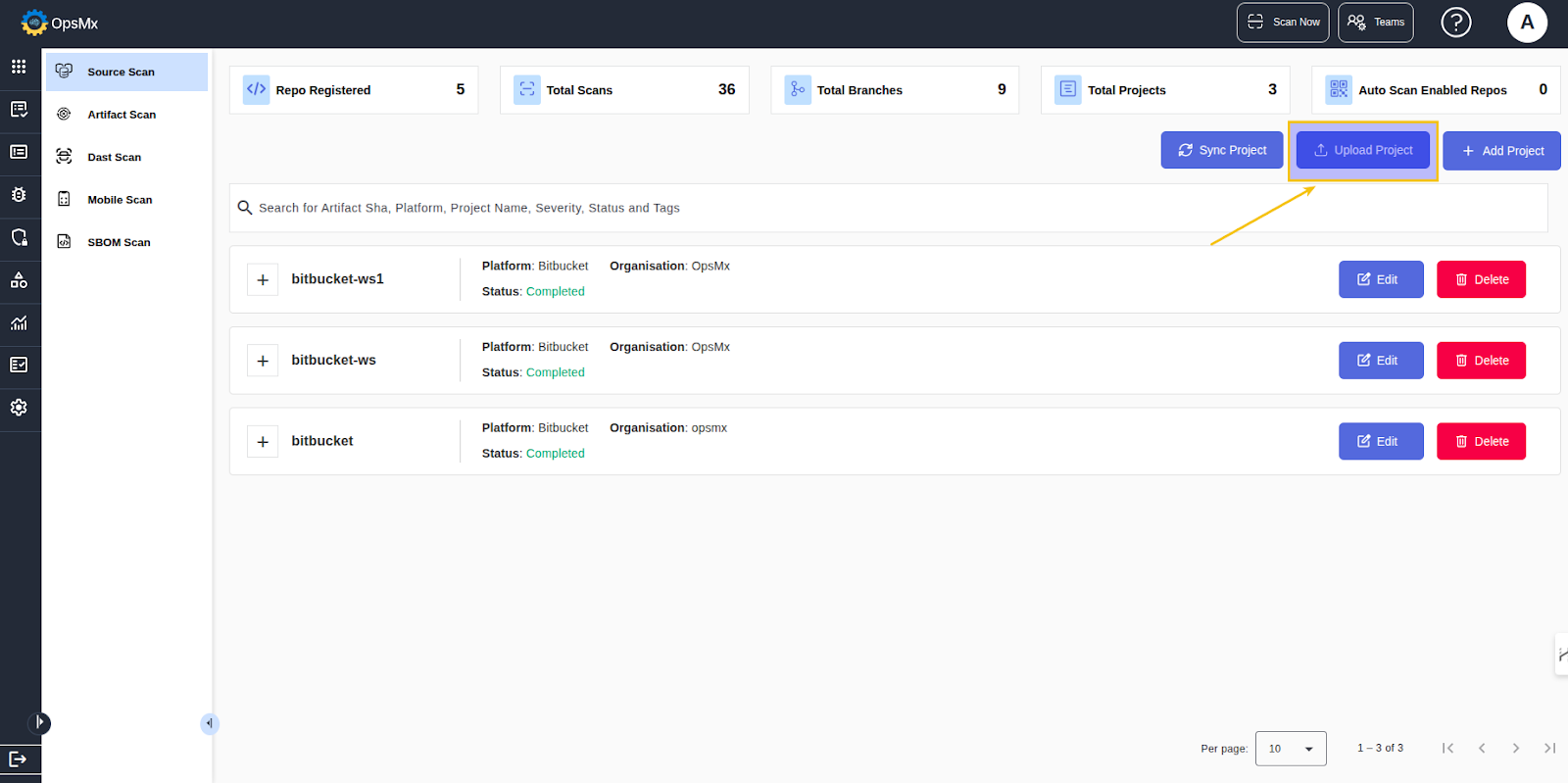

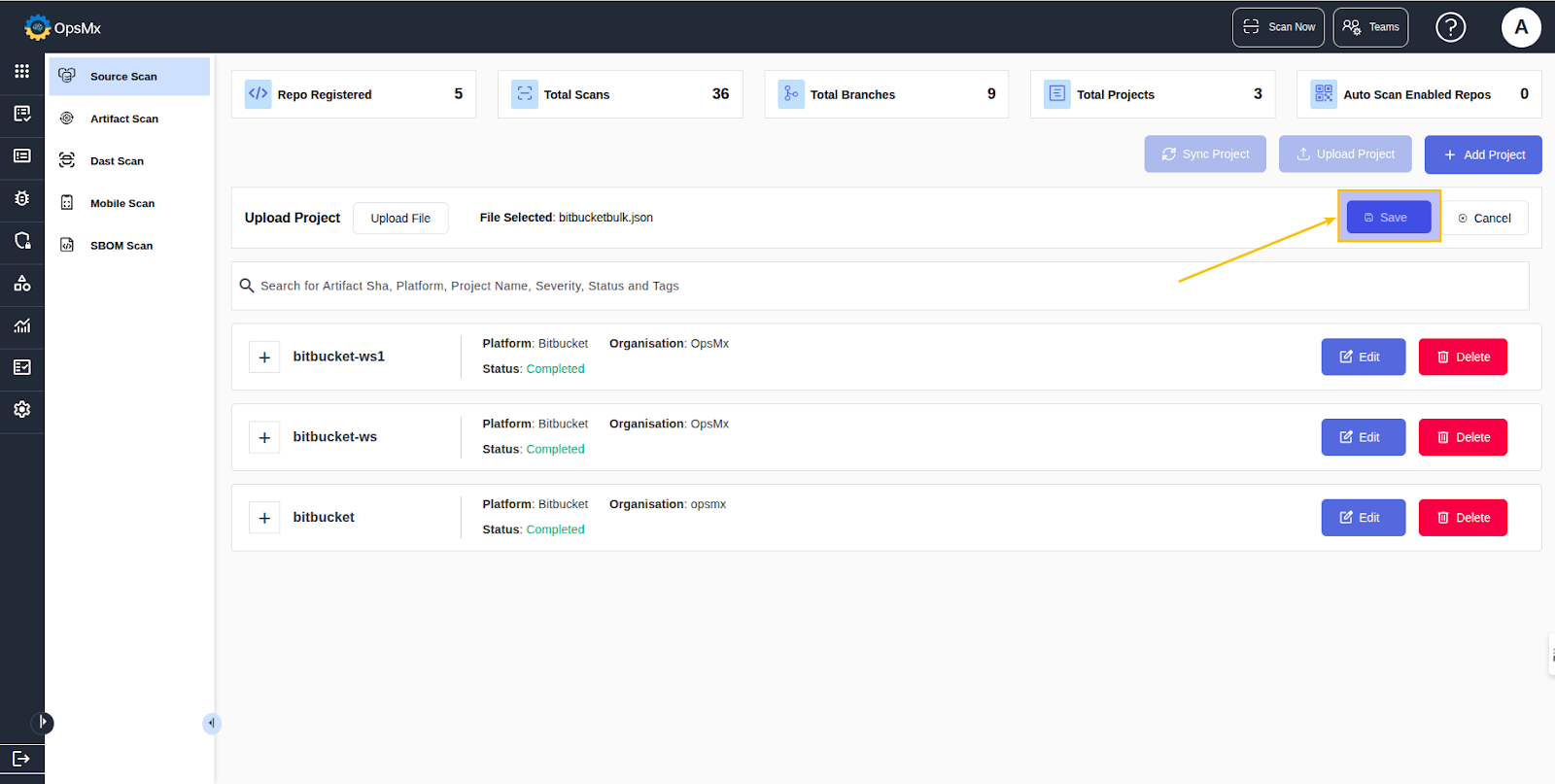

To upload a project from your local, for scanning, click Upload Project.

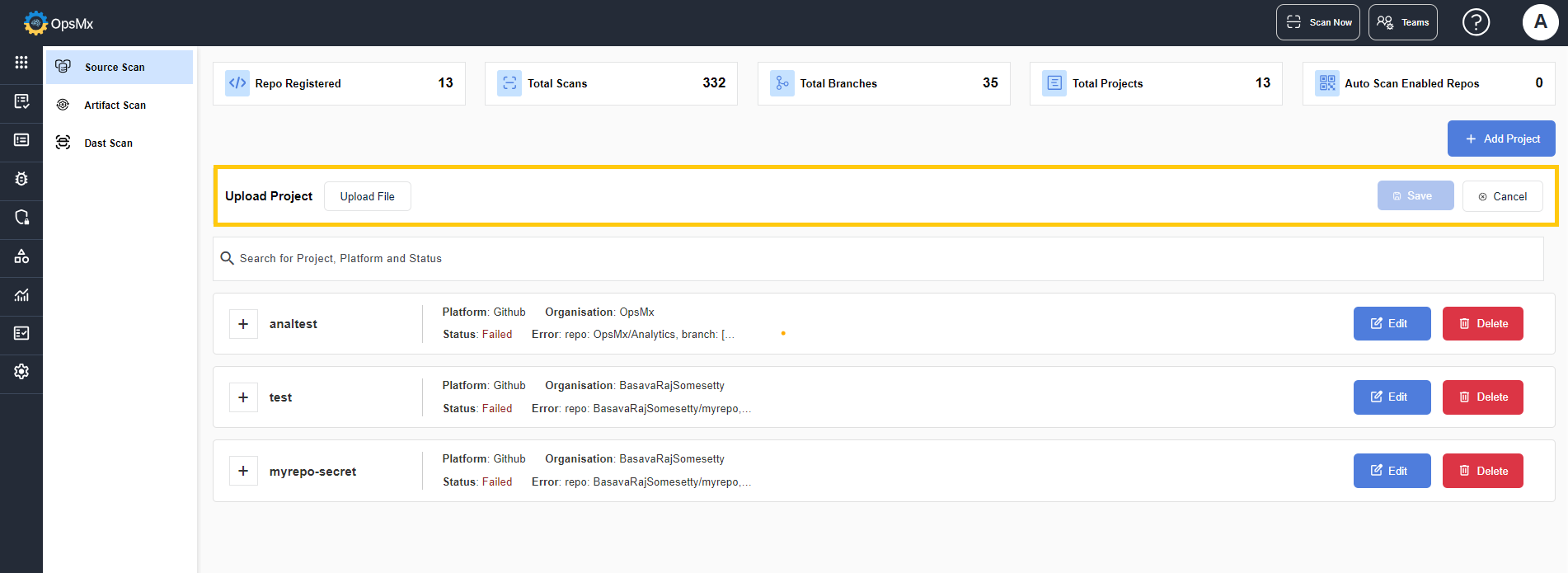

Click Upload File and select the json file that you want to add for scanning.
Click Save.
The file gets added for scanning.
To Integrate JIRA at Project Level
JIRA can be integrated at project level to create tickets whenever an alert is identified.

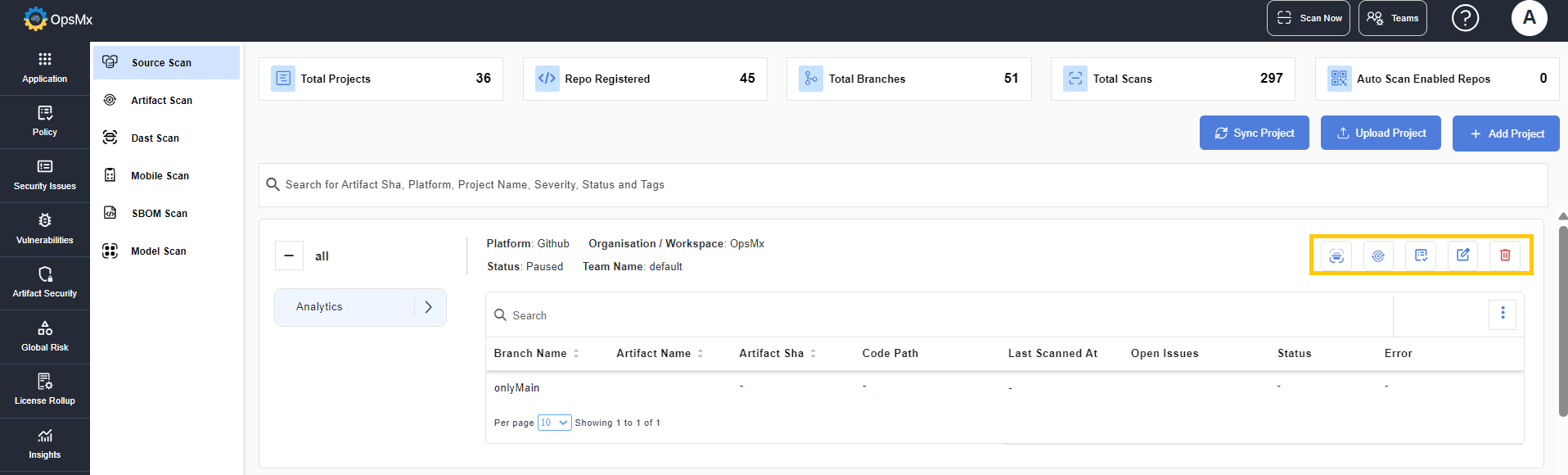

To integrate JIRA, click the Integrations icon on expanding the project.

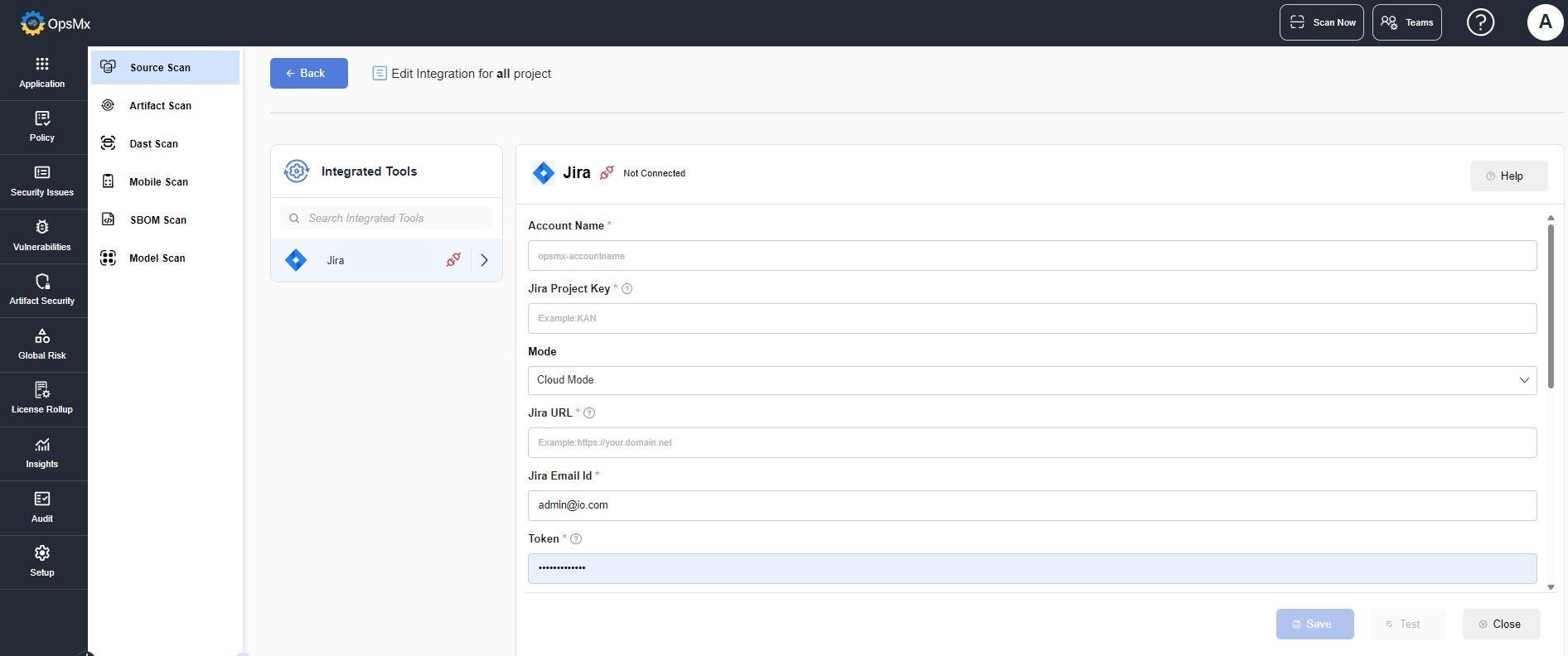

The JIRA integration page is displayed. Click Add Account and enter the details.
Enter the values for the following fields:
Account Name - Enter the JIRA account name.
Jira Project Key - Enter the name of your Jira project.
Jira URL - Enter your Jira host Url
Jira Email Id - Enter the username to access Jira.
Token - Enter the password / token for the Jira account.
Enable Automatically create Jira tickets during the scan to create JIRA ticket to the team owner when the alerts are identified.
Trigger Type - Indicates at which level Jira tickets should be created.
Create Jira ticket at the Component Alert level - Jira tickets will be created for each individual impacted component.
Create Jira ticket at the Deduplication Alert level - A single Jira ticket will be created for all the impacted components.
Creation Scope - If Vulnerabilities is selected, Jira is created only for Critical and High alerts. If All Policies is selected Jira is created for all alerts.
Enable Assign the Jira ticket to the Team owner if you want to assign the ticket to the team owner.
Fields - Enter the labels that need to be added in the created Jira ticket.
Values - Enter the values that need to be given in the Jira ticket. The given variables are replaced with actual values when the tickets are created.
Status Keyword Mapping - You can set the keywords for the status.
Click Test to check if the entered values are valid.
Once validated, click Save. The tool is connected.
To View AI-Based Remediation Details
AI Remediation is integrated in the Scan Now option.
Expand the project for which you want to view the remediation details.

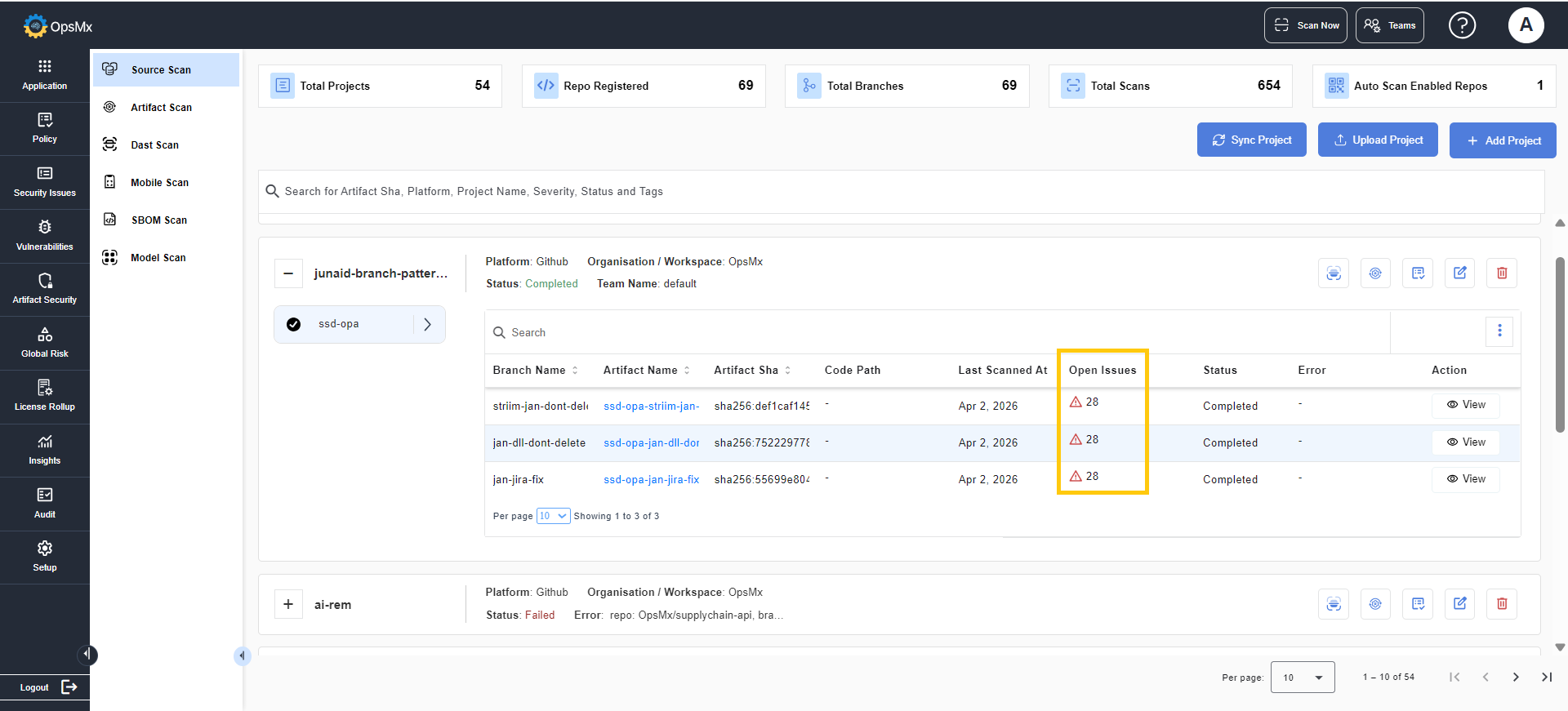

Click Open Issues to view the list of alerts.

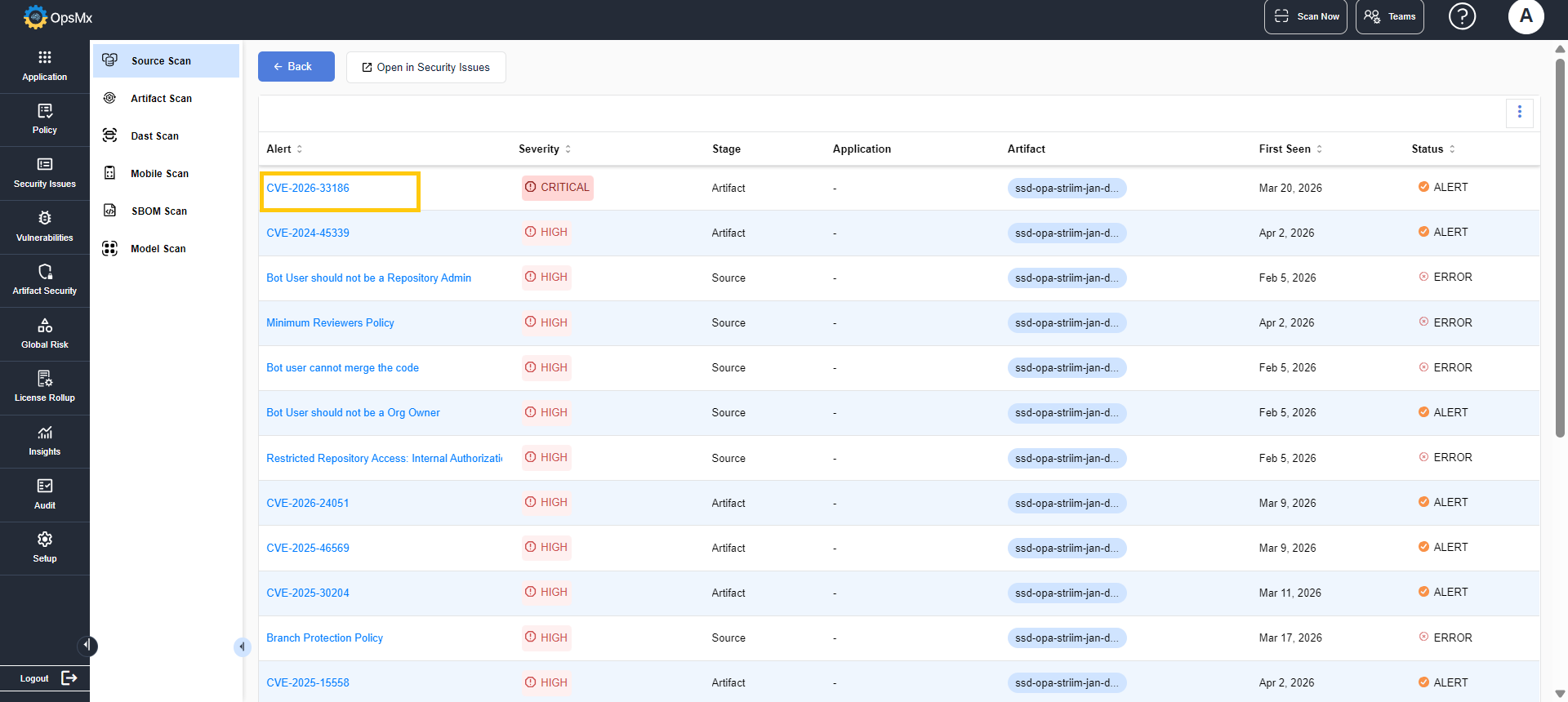

From the alerts list, select the required alert.
Navigate to the Impacted Components section and click on it.

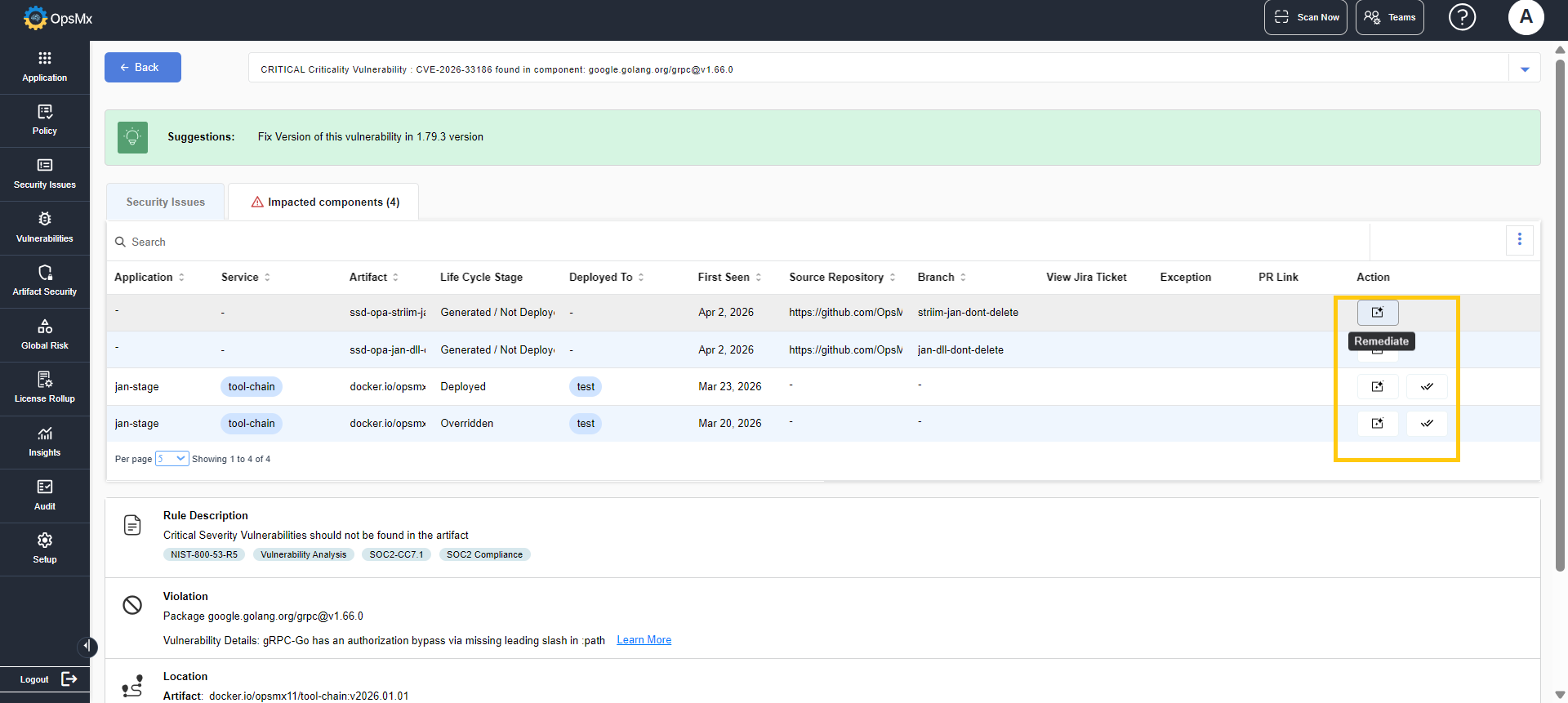

In the list of applications, identify the relevant application and click Remediate.

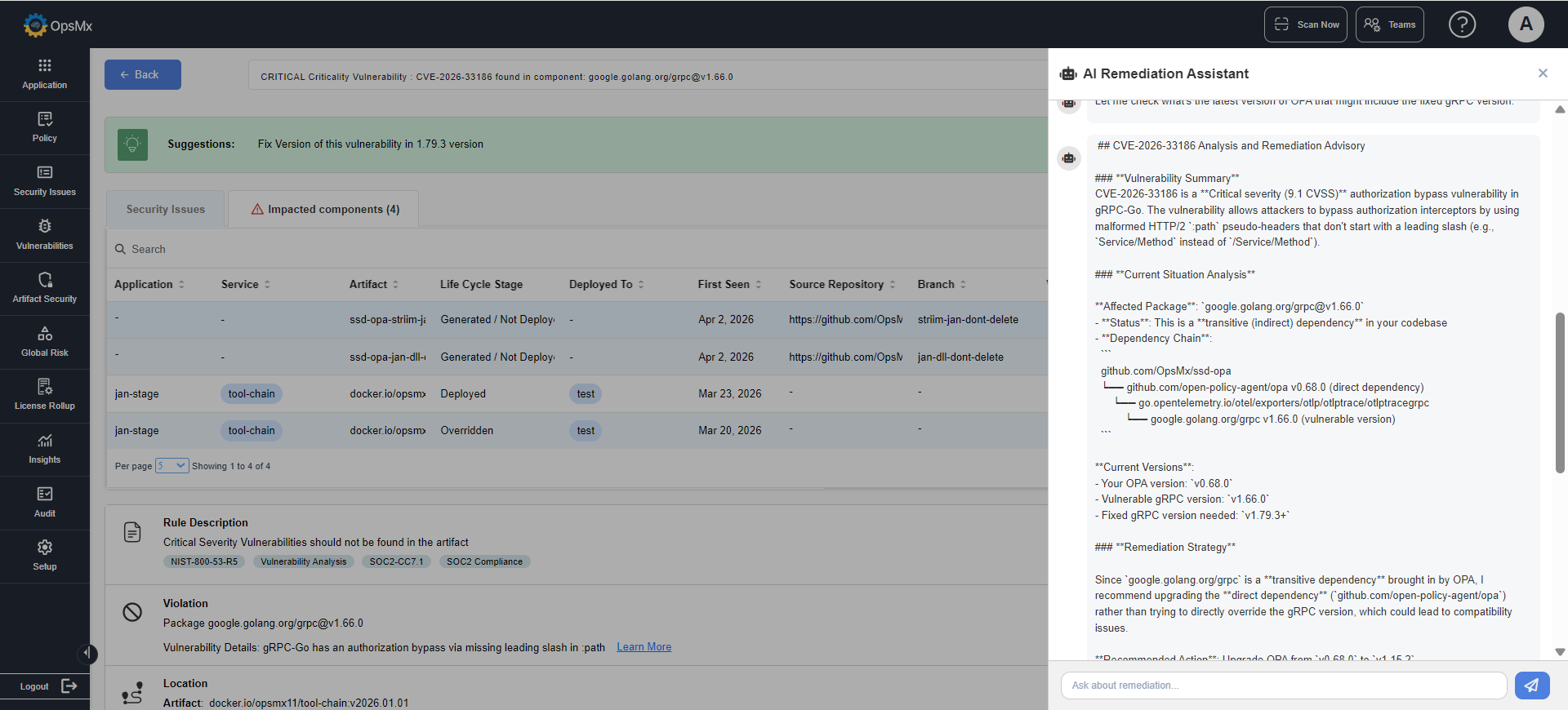

The AI Remediation window is displayed. It analyzes the selected alert and provides a detailed summary of the issue, recommended remediation steps and possible workarounds.
AI Remediation is supported only for repositories hosted on GitHub Cloud. Remediation is performed only when the source details of the associated artifacts or projects are available.
To Sync Project
To View and Interpret Scan Results

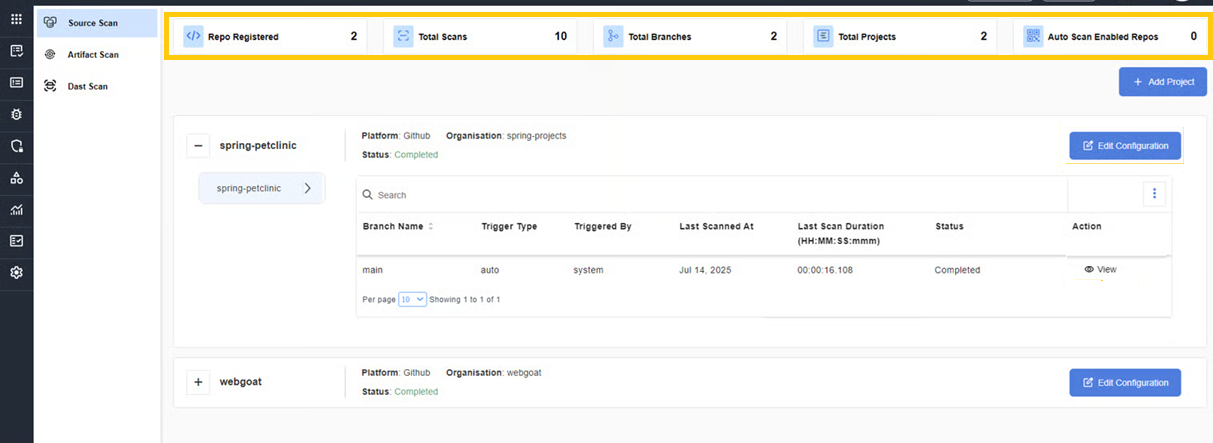

Once the scan is complete, OpsMx generates the overall results and they are displayed as shown below:
Repos Registered
Total Branches
Total Scans
Total Projects
Auto Scan Enabled Repos
The panel at the bottom displays the project details. On expanding each project you can view the complete details of it.
The current status of the scan (completed, pending or failed) is displayed to notify the status of the project.

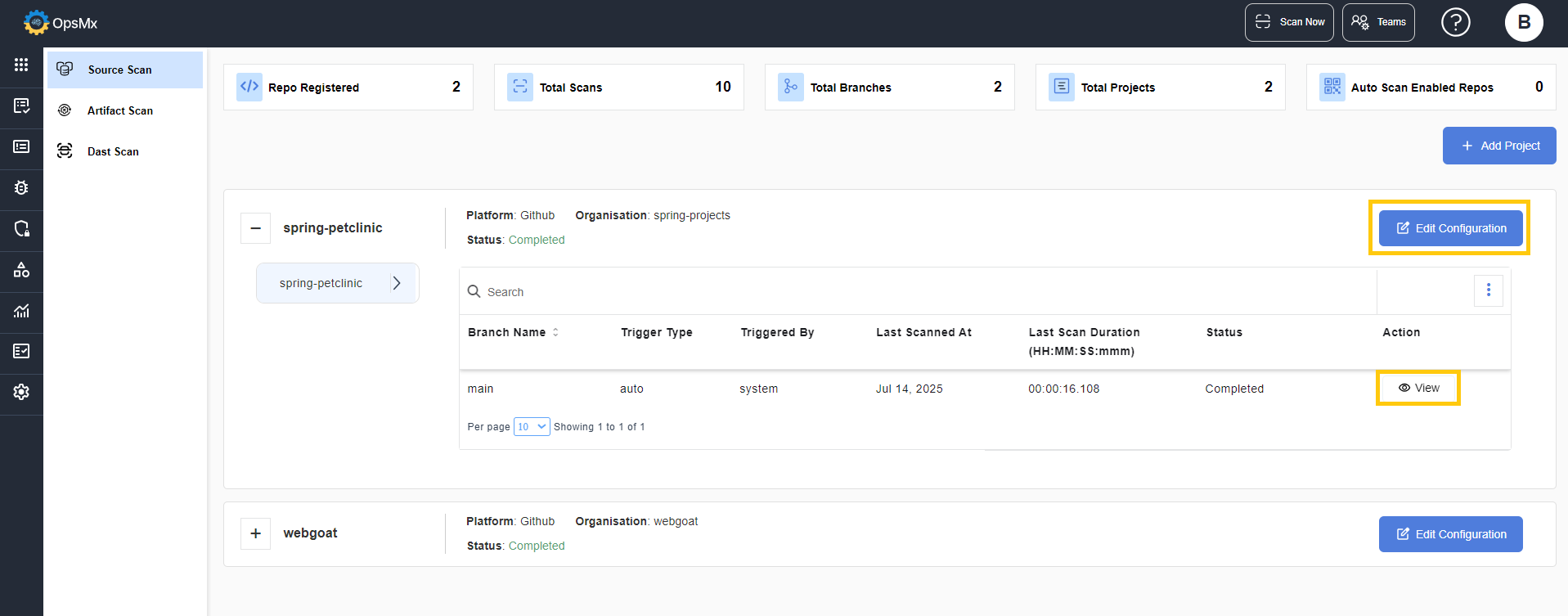

To edit the configuration details of the project, click the Edit Configuration button.
Click the View option in the Action button, to view the SAST and SCA scan results of the project.

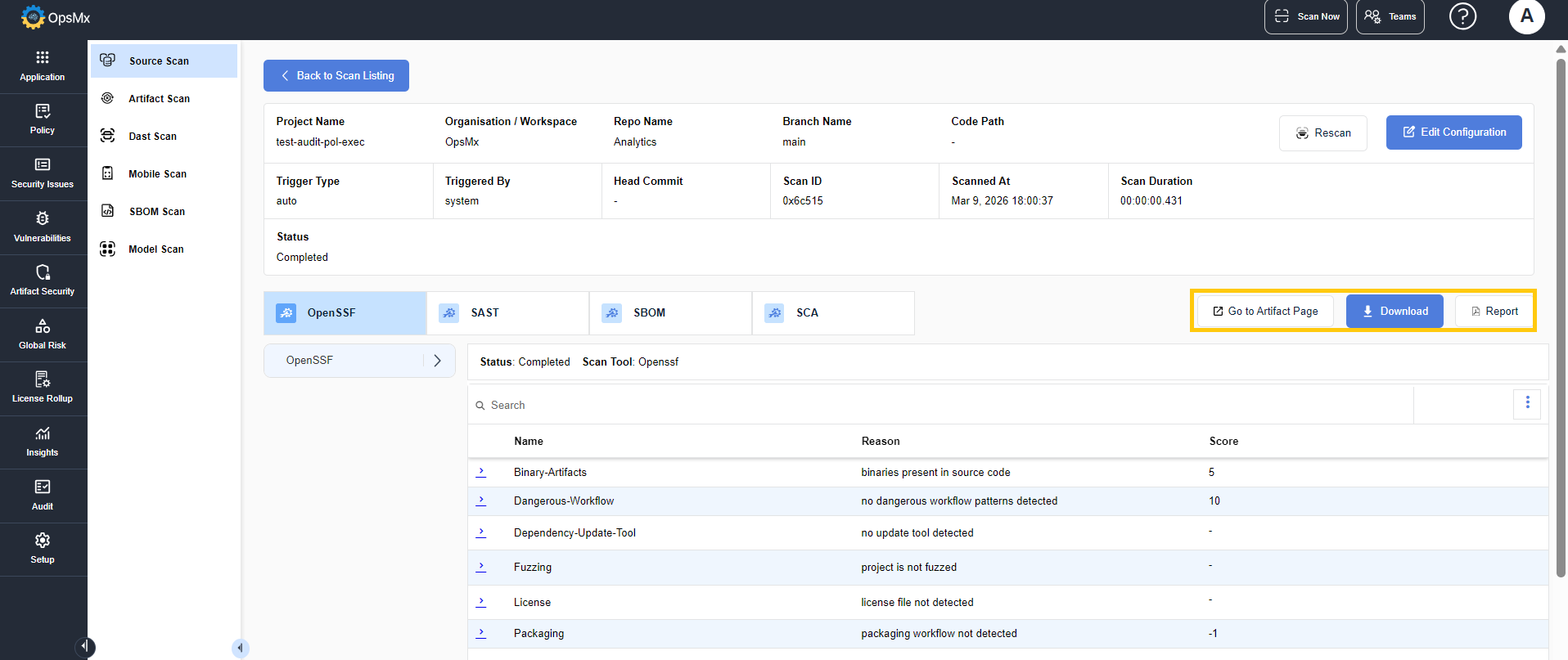

The results page displays the complete data of the scan details.
On clicking the Download button, the scan results are downloaded in .json or .csv format.
On clicking Report, the scan results are downloaded in a report format.
On clicking Go to Artifact Page, you are redirected to the related artifact page.
